Onsemi
UD0506T-H
Planar Ultrafast Rectifier, Low VF type, 5A, 600V, 1.3V, TP/TP-FA, DPAK / TP-FA, 500-BLKBG
PackageTO-251-3
Quick Jump:
Technical Specifications
Onsemi UD0506T-H technical specifications.
General
Average Rectified Current
5A
Package/Case
TO-251-3
Element Configuration
Single
Forward Current
5A
Halogen Free
Halogen Free
Lead Free
Lead Free
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Repetitive Reverse Voltage (Vrrm)
600V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
600V
Max Surge Current
40A
Package Quantity
500
Packaging
Bulk
Peak Non-Repetitive Surge Current
40A
Radiation Hardening
No
Reverse Recovery Time
150ns
RoHS Compliant
Yes
Compliance
RoHS
Compliant
Datasheet
Onsemi UD0506T-H Datasheet
Download the complete datasheet for Onsemi UD0506T-H to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

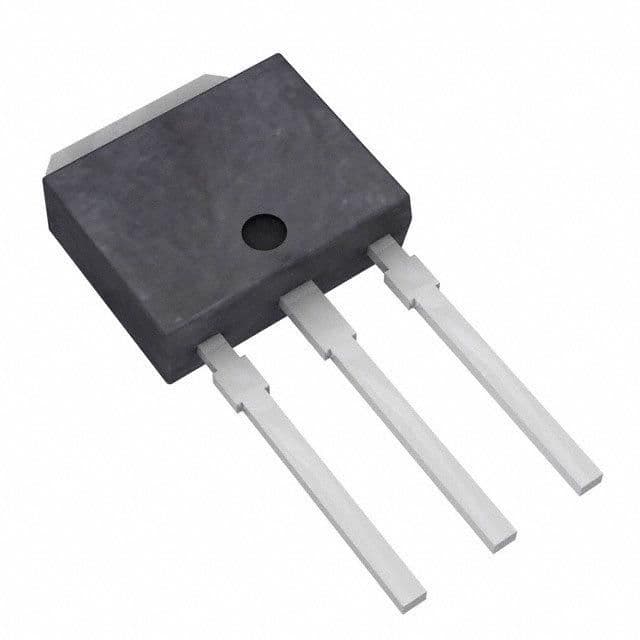

Product Images
