Unidirectional TVS Diode for circuit protection, featuring a 3.3V working voltage and 5V reverse breakdown voltage. This component offers 47pF capacitance and 240mW peak pulse power dissipation within a compact SOT-723-3 SMD/SMT package. Designed for ESD protection, it operates across a temperature range of -55°C to 150°C with a low leakage current of 1uA.
PackageSOT-723-3
Capacitance47pF
Voltage Rating3.3V
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi UESD3.3DT5G technical specifications.
General
Capacitance
47pF
Package/Case
SOT-723-3
Depth
0.8mm
Diode Type
ZENER
Direction
Unidirectional
ESD Protection
Yes
Height
0.55mm
Lead Free
Lead Free
Leakage Current
1uA
Length
1.2mm
Max Breakdown Voltage
5V
Min Breakdown Voltage
5V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Power Dissipation
240mW
Max Reverse Leakage Current
1uA
Number of Channels
1
Number of Elements
2
Number of Lines
2
Number of Unidirectional Channels
2
Operating Supply Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Peak Pulse Power
240mW
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Breakdown Voltage
5V
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
uESD
Termination
SMD/SMT
Width
0.85mm
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Onsemi UESD3.3DT5G Datasheet
Download the complete datasheet for Onsemi UESD3.3DT5G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

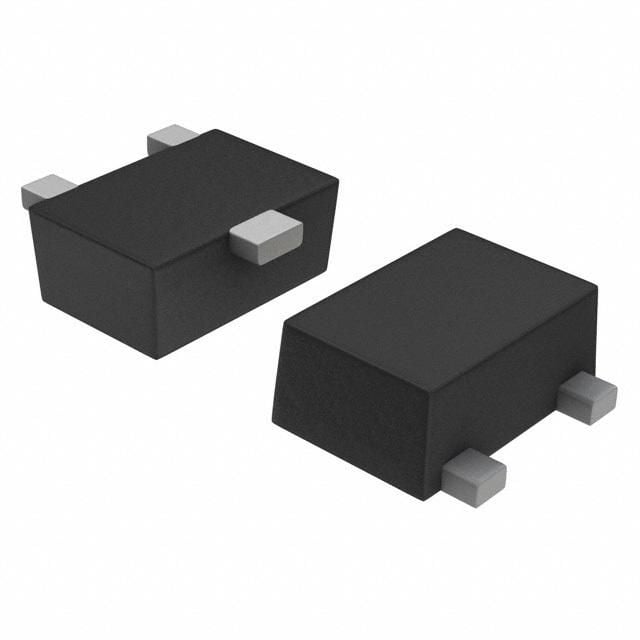

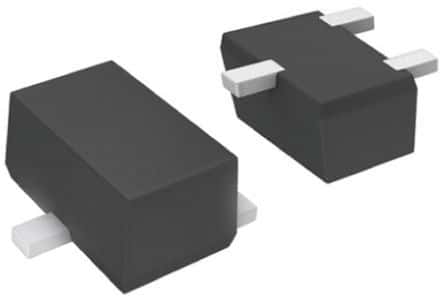

Product Images
