Unidirectional ESD suppressor with a 3.3V working voltage, offering ±30kV ESD protection. Features a low 80pF capacitance and 10.4A peak pulse current capability. This surface mount device operates from -55°C to 150°C with a 2.5uA leakage current. Delivered in tape and reel packaging.
Capacitance80pF
Voltage Rating3.3V
MountingSurface Mount
PolarityUnidirectional
Quick Jump:
Technical Specifications
Onsemi UESD3.3ST5G technical specifications.
General
Capacitance
80pF
Clamping Voltage
10.9V
Depth
0.6mm
Diode Type
ZENER
Direction
Unidirectional
Lead Free
Lead Free
Leakage Current
2.5uA
Length
1mm
Min Breakdown Voltage
5V
Max Operating Temperature
150°C
Min Operating Temperature
-55°C
Max Surge Current
10.4A
Mount
Surface Mount
Number of Channels
1
Number of Unidirectional Channels
1
Operating Supply Voltage
3.3V
Package Quantity
8000
Packaging
Tape and Reel
Peak Pulse Current
10.4A
Peak Pulse Power
113W
Polarity
Unidirectional
Power Line Protection
No
Radiation Hardening
No
Reverse Standoff Voltage
3.3V
RoHS Compliant
Yes
Series
uESD
Working Voltage
3.3V
Compliance
RoHS
Compliant
Datasheet
Onsemi UESD3.3ST5G Datasheet
Download the complete datasheet for Onsemi UESD3.3ST5G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

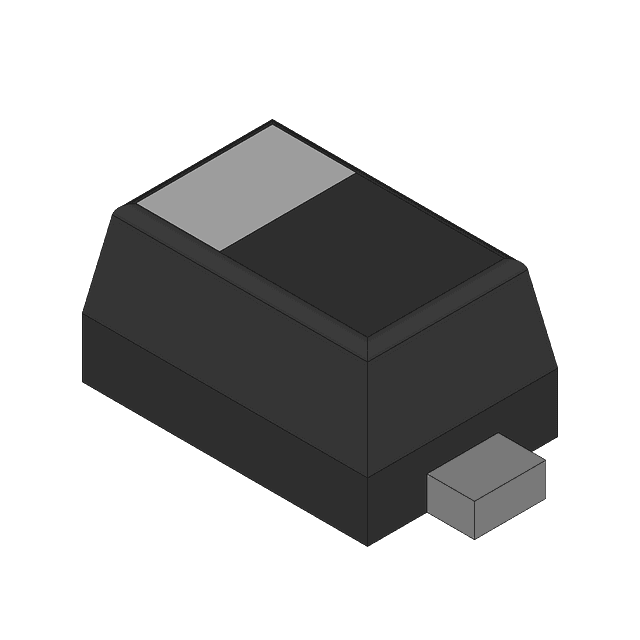

Product Images
