Single, through-hole mounted general purpose rectifier with 1A average rectified current and 200V repetitive reverse voltage. Features 50ns reverse recovery time, 30A peak non-repetitive surge current, and 10uA maximum reverse current. Operates from -65°C to 150°C with 2.08W power dissipation. Packaged in tape and reel with a DO-41 case.
PackageDO-41
Capacitance17pF
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Onsemi UF4003 technical specifications.
General
Average Rectified Current
1A
Capacitance
17pF
Package/Case
DO-41
Current Rating
1A
Diameter
2.72mm
Element Configuration
Single
Forward Current
1A
Lead Free
Lead Free
Length
5.2mm
Max Forward Surge Current (Ifsm)
30A
Max Operating Temperature
150°C
Min Operating Temperature
-65°C
Max Repetitive Reverse Voltage (Vrrm)
200V
Max Reverse Current
10uA
Max Reverse Voltage (DC)
200V
Max Surge Current
30A
Mount
Through Hole
Output Current
1A
Package Quantity
1
Packaging
Tape and Reel
Peak Non-Repetitive Surge Current
30A
Polarity
Standard
Power Dissipation
2.08W
Radiation Hardening
No
Reach SVHC Compliant
No
Reverse Recovery Time
50ns
Reverse Recovery Time-Max
50ns
Reverse Voltage
200V
RoHS Compliant
Yes
DC Rated Voltage
200V
Weight
0.245g
Compliance
RoHS
Compliant
Datasheet
Onsemi UF4003 Datasheet
Download the complete datasheet for Onsemi UF4003 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

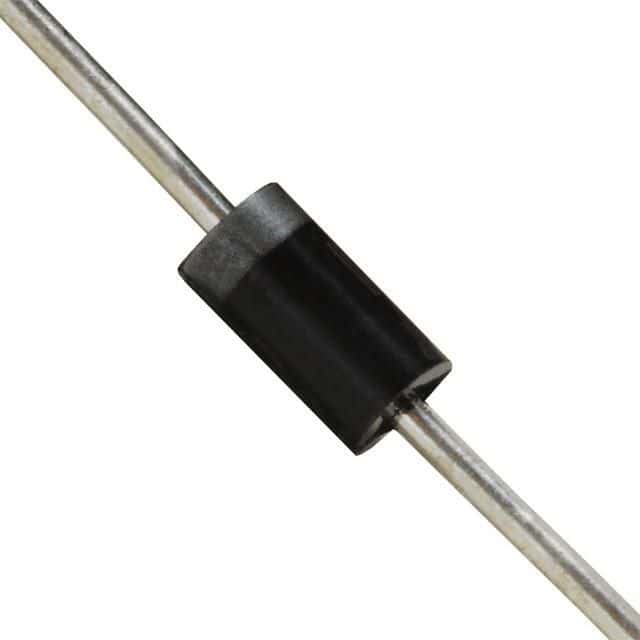

Product Images
