AC Solid State Relay (SSR) with a 10A load current rating and a maximum output voltage of 240V. Features include 4kV isolation voltage, 10A input current, and a wide operating temperature range of -40°C to 100°C. This RoHS compliant component offers screw termination for panel mounting and boasts UL, CSA, and CE approvals. Its dimensions are 44.5mm length, 44.4mm width, and 19.6mm height, with a depth of 57.2mm.
Capacitance8pF
Current Rating10A
MountingScrew, Panel
Quick Jump:
Technical Specifications
Opto 22 240A10 technical specifications.
General
Approvals
UL, CSA, CE
Capacitance
8pF
Current Rating
10A
Depth
57.2mm
Height
19.6mm
Input Current
10A
Input Type
AC
Isolation Voltage
4kV
Isolation Voltage-Max
4kV
Lead Free
Lead Free
Leakage Current
14mA
Length
44.5mm
Load Current
10A
Max Operating Temperature
100°C
Min Operating Temperature
-40°C
Max Output Voltage
240V
Max Supply Voltage (AC)
280V
Min Supply Voltage (AC)
24V
Max Supply Voltage
280V
Min Supply Voltage
24V
Mount
Screw, Panel
On-state Resistance-Max
33kR
Output Current
10A
Reach SVHC Compliant
No
RMS Current (Irms)
10A
RoHS Compliant
Yes
Termination
Screw
Width
44.4mm
Compliance
RoHS
Compliant
Datasheet
Opto 22 240A10 Datasheet
Download the complete datasheet for Opto 22 240A10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

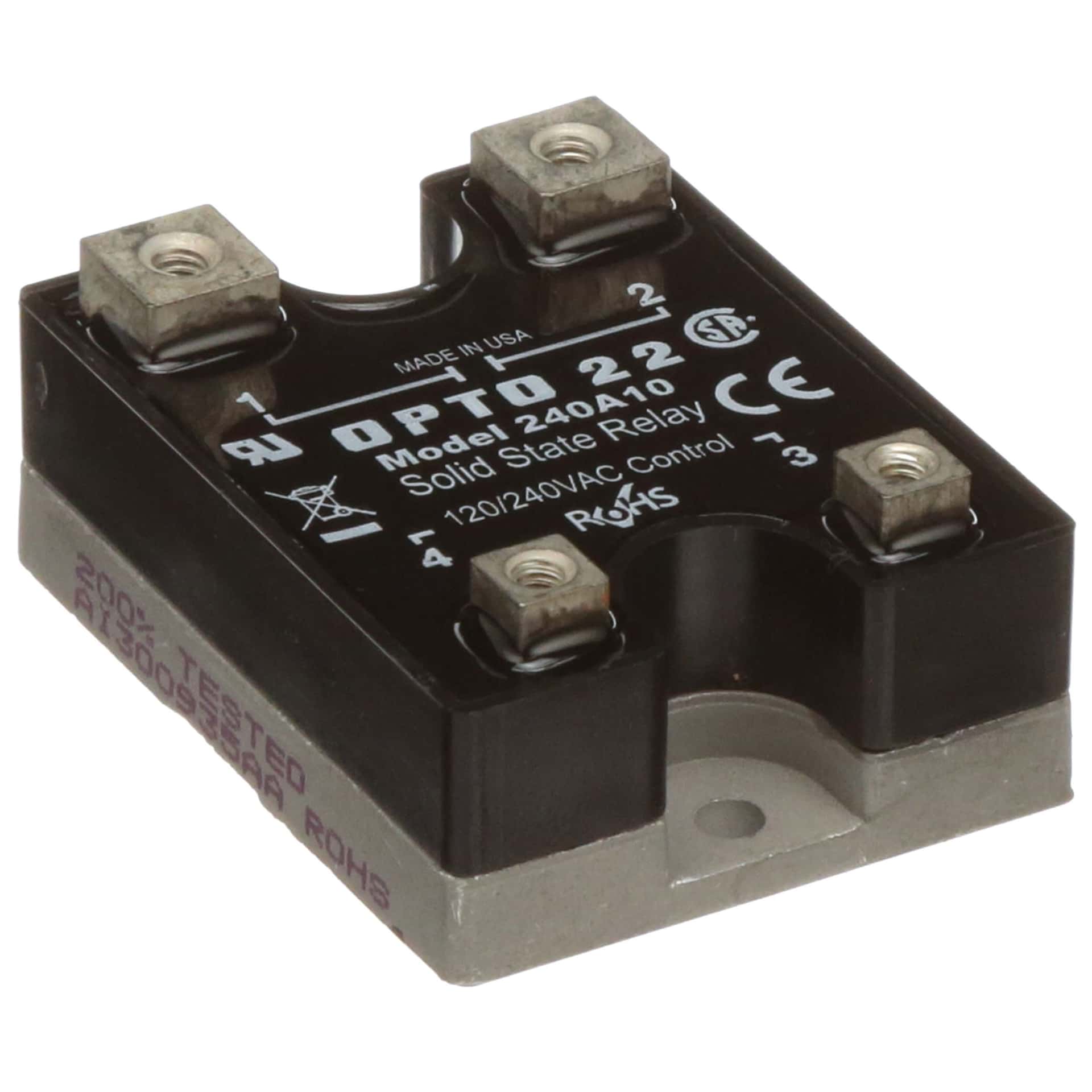

Product Images
