60V 3A Solid State Relay, 4kV Isolation, 100°C Operation, UL/CSA Approval

Opto 22

DC60MP

Name: DC60MP Opto 22
Brand: Opto 22
SKU: DC60MP

60V 3A Solid State Relay, 4kV Isolation, 100°C Operation, UL/CSA Approval

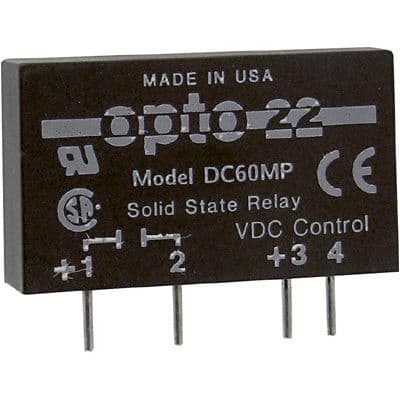

The DC60MP is a 60V 3A solid state relay with 4kV isolation voltage and a maximum operating temperature of 100°C. It is approved to UL and CSA standards and features a compact design with a depth of 10.2mm and a height of 24.9mm. The relay is suitable for panel, DIN rail, PCB, and through hole mounting and is RoHS compliant.

Capacitance8pF

Current Rating3A

MountingPanel, DIN Rail, PCB, Through Hole

Quick Jump:

Technical Specifications

Opto 22 DC60MP technical specifications.

General

Approvals	UL, CSA
Capacitance	8pF
Current Rating	3A
Depth	10.2mm
Height	24.9mm
Isolation Voltage	4kV
Length	43.2mm
Load Current	3A
Max Operating Temperature	100°C
Min Operating Temperature	-40°C
Max Supply Voltage (DC)	60V
Min Supply Voltage (DC)	5V
Max Voltage Rating (DC)	60V
Mount	Panel, DIN Rail, PCB, Through Hole
Operating Supply Voltage	60V
Output Current	3A
RoHS Compliant	Yes
Termination	PCB
Width	10.2mm
