Opto 22
G4PB8
I/O RACK; For Use With:G4 I/O Modules; PCB Type:8 Channel I/O Rack; Size:6 x 3.25 in; Thickness:2.32 ;RoHS Compliant: No
PackageModule
MountingRack, Panel
Quick Jump:
Technical Specifications
Opto 22 G4PB8 technical specifications.
General
Approvals
UL, CSA
Package/Case
Module
Depth
55.9mm
Fuse Size
N/A
Length
438.2mm
Manufacturer Series
CS1 Series
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Mount
Rack, Panel
Number of Channels
8
Number of I/Os
8
Operating Supply Voltage
24V
Primary Type
MODULE
Termination
Screw
Thickness
58.9mm
Width
101.6mm
Compliance
RoHS
Not Compliant
Datasheet
Opto 22 G4PB8 Datasheet
Download the complete datasheet for Opto 22 G4PB8 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

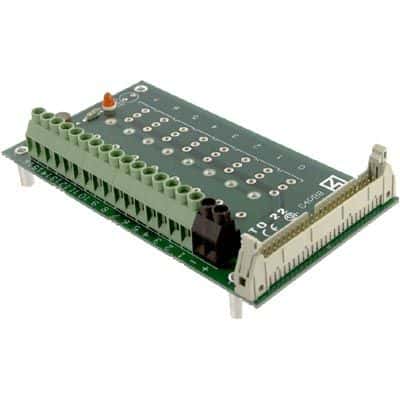

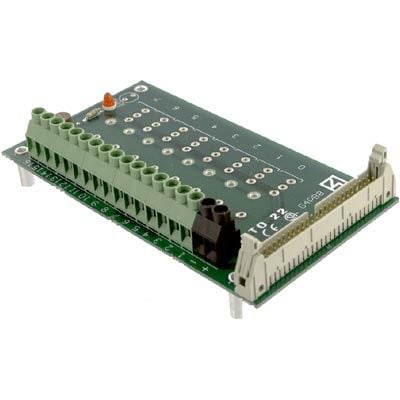

Product Images
