Technical Specifications
Osram LGL29K-F2J1-24 technical specifications.
General
| Package/Case | 0603 |
| Forward Current | 20mA |
| Height | 0.65mm |
| Illumination Color | Green |
| Lead Free | Lead Free |
| Length | 1.3mm |
| Lens Color | Colorless |
| Lens Style | Rectangular |
| Lens Transparency | Diffused |
| Luminous Intensity | 5.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Package Quantity | 5000 |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | SMARTLED 0603 |
| Viewing Angle | 160° |
| Weight | 6E-05oz |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram LGL29K-F2J1-24 Datasheet
Download the complete datasheet for Osram LGL29K-F2J1-24 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

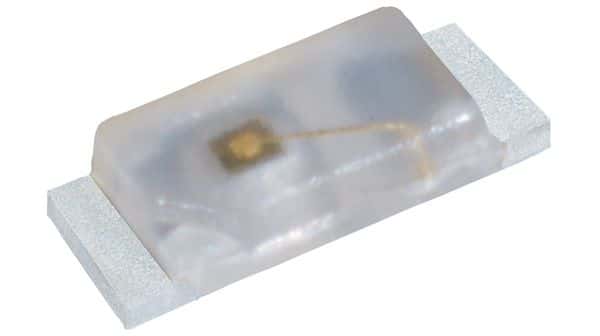

Product Images
