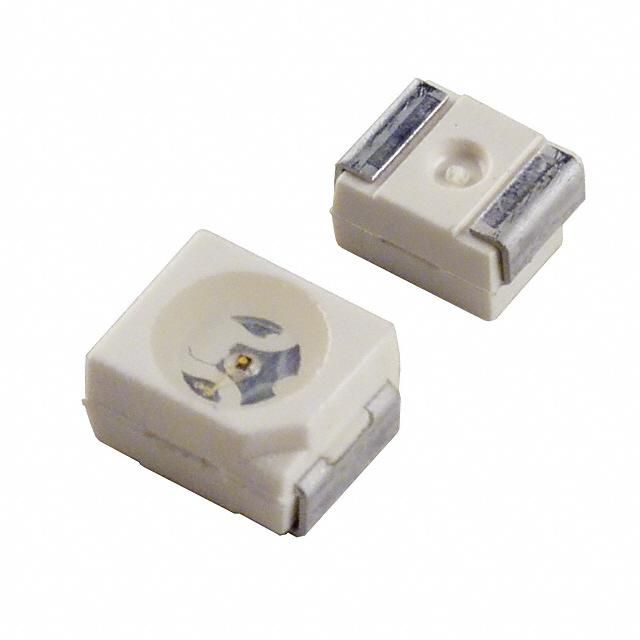

The TOPLED Orange LED from Osram features a luminous intensity of 19.6mcd and a luminous flux of 0.06lm. It has a forward current rating of 20mA and is available in a PLCC package. The LED has a viewing angle of 120° and a wavelength of 610nm. It is designed for surface mount and has a maximum operating temperature of 100°C and a minimum operating temperature of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Osram LOT67K-L1M2-24-Z datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Osram LOT67K-L1M2-24-Z technical specifications.
| Package/Case | PLCC |
| Color | Orange |
| Diameter | 2.4mm |
| Forward Current | 20mA |
| Height | 2.1mm |
| Illumination Color | Orange |
| Lead Free | Lead Free |
| Length | 3.2mm |
| Lens Color | Colorless |
| Lens Size | 2.4mm |
| Lens Style | Round, Flat, Diffused, Colorless, Circular |
| Lens Transparency | Clear |
| Luminous Flux | 0.06lm |
| Luminous Intensity | 19.6mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Series | TOPLED® |
| Viewing Angle | 120° |
| Wavelength | 610nm |
| Width | 2.8mm |
| RoHS | Compliant |
Download the complete datasheet for Osram LOT67K-L1M2-24-Z to view detailed technical specifications.
