Green diffused 0603 SMD LED emitter with a 160° viewing angle. Features a 20mA forward current, 0.035lm luminous flux, and 11.8mcd luminous intensity. Housed in a 0603 (1608 metric) surface mount package with a flat, diffused, colorless, rectangular lens. Operates within a -40°C to 100°C temperature range and is RoHS compliant.
Package0603
MountingSurface Mount
Quick Jump:
Technical Specifications
Osram LPL296-J2L2-25-Z technical specifications.
General
| Case Code (Imperial) | 0603 |
| Case Code (Metric) | 1608 |
| Package/Case | 0603 |
| Color | Green |
| Forward Current | 20mA |
| Height | 0.65mm |
| Illumination Color | Green |
| Length | 1.7mm |
| Lens Color | White |
| Lens Size | 0.8mm |
| Lens Style | Flat, Diffused, Colorless, Rectangular |
| Lens Transparency | Diffused |
| Luminous Flux | 0.035lm |
| Luminous Intensity | 11.8mcd |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Surface Mount |
| Number of LEDs | 1 |
| Package Quantity | 5000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SMARTLED® 0603 |
| Viewing Angle | 160° |
| Width | 0.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Osram LPL296-J2L2-25-Z Datasheet
Download the complete datasheet for Osram LPL296-J2L2-25-Z to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

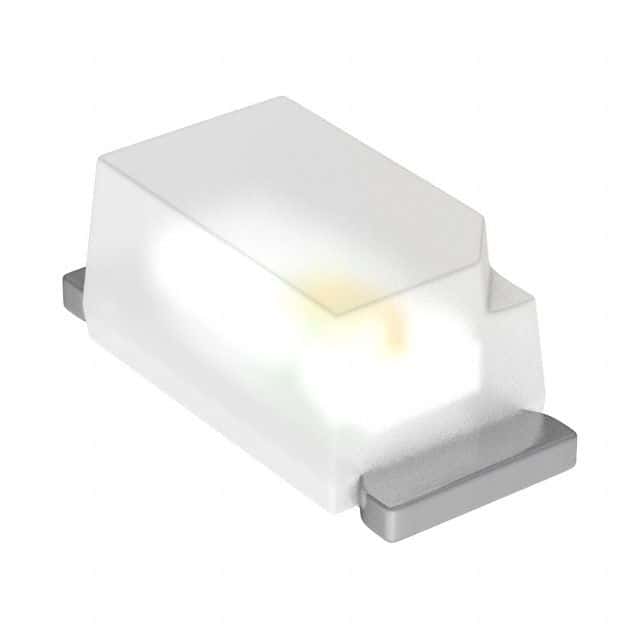

Product Images
