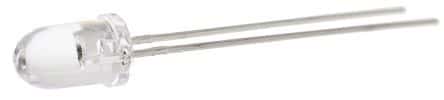

High power infrared emitter with 860nm wavelength and a narrow 6° viewing angle. This through-hole mounted LED emitter features a 1.5V operating supply voltage and 100mA forward current, with a 12ns fall time and 180mW power dissipation. Encased in a 5mm diameter, T-1 3/4 package, it operates within a -40°C to 100°C temperature range and is RoHS compliant.
Sign in to ask questions about the Osram SFH4550 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Osram SFH4550 technical specifications.
| Depth | 5.9mm |
| Diameter | 5mm |
| Fall Time | 12ns |
| Forward Current | 100mA |
| Lead Free | Lead Free |
| Lead Length | 28mm |
| Length | 5.9mm |
| Lens Style | Circular, Round |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Mount | Through Hole |
| Number of Elements | 1 |
| Number of LEDs | 1 |
| Operating Supply Voltage | 1.5V |
| Orientation | Top View |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Power Dissipation | 180W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reverse Voltage | 5V |
| RoHS Compliant | Yes |
| Touchscreen | Infrared (IR) |
| Viewing Angle | 6° |
| Wavelength | 860nm |
| Width | 5.7mm |
| RoHS | Compliant |
