Single-channel optocoupler with Triac AC output, featuring 600V isolation and 100mA load current capability. Designed for zero-crossing and random phase applications, this component offers 5kV isolation voltage and operates with a 20mA input current. The 4-pin DIP package supports through-hole mounting on PCBs and is RoHS compliant. Maximum power dissipation is 500mW, with an operating temperature range of -40°C to 100°C.
PackageDIP
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Panasonic APT1211 technical specifications.
General
| Approvals | VDE, cULus |
| Package/Case | DIP |
| Depth | 6.4mm |
| Forward Current | 50mA |
| Height | 2.7mm |
| Hold Current | 3.5mA |
| Input Current | 20mA |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Length | 4.78mm |
| Load Current | 100mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 500mW |
| Mount | Through Hole, PCB |
| Number of Channels | 1 |
| Output Current | 100mA |
| Output Voltage | 600V |
| Package Quantity | 100 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | Unknown |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | Yes |
| Series | APT |
| Termination | Through Hole |
| Throw Configuration | SPST |
| Turn-On Delay Time | 100us |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic APT1211 Datasheet
Download the complete datasheet for Panasonic APT1211 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

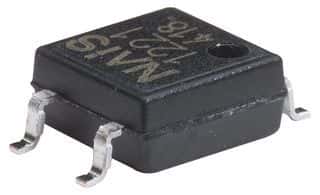

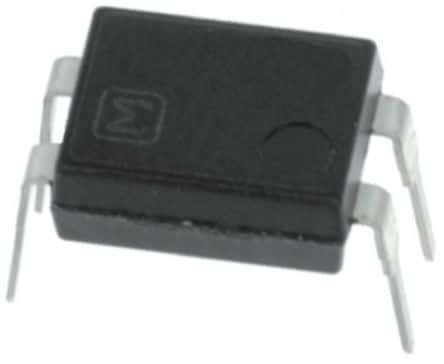

Product Images
