Single-channel optocoupler featuring Triac AC output with zero-crossing switching. Offers a 600V output voltage and 100mA RMS output current. Designed for surface mount applications with a 5kV isolation voltage. Operates within a -40°C to 100°C temperature range. Includes a 20mA input current requirement and 50mA forward current.
PackageSMD/SMT
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Panasonic APT1222A technical specifications.
General
| Package/Case | SMD/SMT |
| Forward Current | 50mA |
| Height | 3.4mm |
| Hold Current | 3.5mA |
| Input Current | 20mA |
| Isolation Voltage | 5kV |
| Lead Free | Lead Free |
| Length | 8.8mm |
| Load Current | 100mA |
| Max Input Voltage | 1.3V |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Power Dissipation | 500mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 100mA |
| Output Voltage | 600V |
| Package Quantity | 50 |
| Packaging | Rail/Tube |
| Power Dissipation | 500mW |
| Reach SVHC Compliant | Unknown |
| Reverse Breakdown Voltage | 6V |
| RMS Current (Irms) | 100mA |
| RoHS Compliant | Yes |
| Series | APT |
| Throw Configuration | SPST |
| Turn-On Delay Time | 100us |
| Width | 6.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic APT1222A Datasheet
Download the complete datasheet for Panasonic APT1222A to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

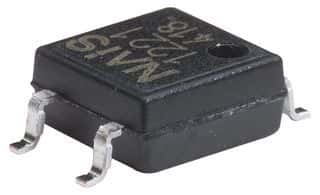

Product Images
