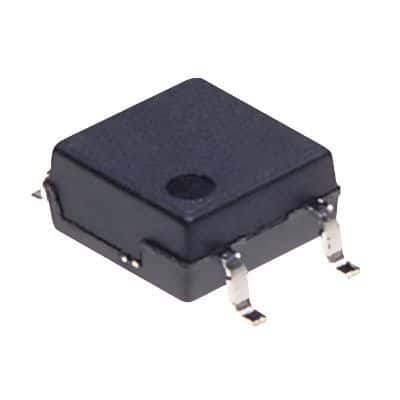

1-channel DC input optocoupler with photovoltaic output, designed for surface mounting in a 4-pin SOP package. Features a 1.75kV isolation voltage and operates with a maximum forward current of 50mA. Delivers an output current of 14uA per channel, with a maximum output voltage of 8.7V. Rated for operation between -40°C and 85°C, with a maximum power dissipation of 75mW. This RoHS compliant component is supplied on tape and reel.
PackageSOP
MountingSurface Mount
Power75mW
Quick Jump:
Technical Specifications
Panasonic APV1121SX technical specifications.
General
| Package/Case | SOP |
| Forward Current | 50mA |
| Input Type | DC |
| Isolation Voltage | 1.75kV |
| Lead Free | Lead Free |
| Max Input Current | 50mA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | 8.7V |
| Max Power Dissipation | 75mW |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current per Channel | 14uA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Dissipation | 75mW |
| Radiation Hardening | No |
| Reverse Breakdown Voltage | 5V |
| Reverse Voltage (DC) | 5V |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic APV1121SX Datasheet
Download the complete datasheet for Panasonic APV1121SX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
