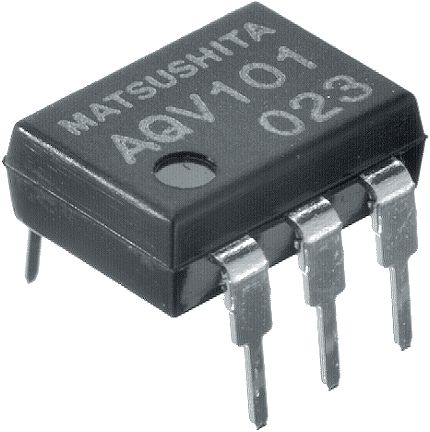

Solid State Relay (SSR) with SPST-NC configuration, designed for AC and DC output. Features a 120mA load current capability and a 400V maximum output voltage. Operates with a 50mA DC input current and a maximum input voltage of 1.5V. Offers 5kV isolation voltage and operates within a temperature range of -40°C to 85°C. Packaged in a DIP form factor with through-hole mounting and PC pin termination.
PackageDIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Panasonic AQV-414EH technical specifications.
General
Package/Case
DIP
Height
3.9mm
Input Current
50mA
Input Type
DC
Isolation Voltage
5kV
Isolation Voltage-Max
5kV
Lead Free
Lead Free
Length
8.8mm
Load Current
120mA
Max Input Current
50mA
Max Input Voltage
1.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
120mA
Max Output Voltage
400V
Mount
Through Hole
On-state Resistance-Max
50R
Output Current
120mA
Output Voltage
400V
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Relay Type
Relay
RoHS Compliant
Yes
Series
PhotoMOS™ AQV
Termination
PC Pin
Test Voltage
5kV
Throw Configuration
SPST
Width
6.4mm
Compliance
RoHS
Compliant
