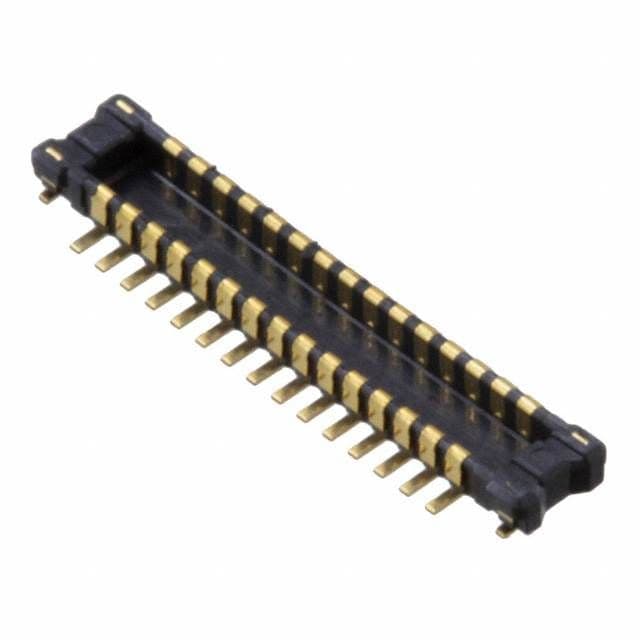

30-position, 2-row fine pitch connector header with a 0.4mm pitch. Features straight, top-entry orientation for surface mount applications. Constructed with copper alloy contacts plated in gold, offering a current rating of 300mA and a maximum voltage rating of 60V AC/DC. Designed for a mated stacking height of 0.8mm, with operating temperatures from -55°C to 85°C. This lead-free, RoHS compliant component is supplied in tape and reel packaging.
Voltage Rating60V
Current Rating300mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic AXE630124 technical specifications.
General
| Contact Material | Copper Alloy |
| Contact Plating | Gold |
| Current Rating | 300mA |
| Depth | 2mm |
| Flammability Rating | UL94 V-0 |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Mated Stacking Heights | 0.8mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -55°C |
| Max Voltage Rating (AC) | 60V |
| Max Voltage Rating (DC) | 6.06kV |
| Mount | Surface Mount |
| Number of Contacts | 30 |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| Pitch | 0.4mm |
| RoHS Compliant | Yes |
| Series | A4S |
| Stack Height | 0.8mm |
| Termination | Solder |
| Voltage Rating | 60V |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic AXE630124 Datasheet
Download the complete datasheet for Panasonic AXE630124 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
