Aluminum electrolytic capacitor with 4700 µF capacitance and 20% tolerance. Features a 16 VDC voltage rating, radial package with 12.5mm diameter and 25mm height, and 5mm lead pitch. Rated for 2000 hours of life at 105°C, with a ripple current of 1.48A. Through-hole mounting, RoHS compliant, and bulk packaged.
PackageRadial
Voltage16V
Capacitance4.7mF
Voltage Rating16V
Quick Jump:
Technical Specifications
Panasonic EEU-HD1C472 technical specifications.
General
Capacitance
4.7mF
Package/Case
Radial
Construction
RADIAL
Diameter
12.5mm
Height
25mm
Lead Diameter
0.6mm
Lead Free
Lead Free
Lead Pitch
5mm
Lead/Base Style
Straight
Length
25mm
Life (Hours)
2000Hour
Max Operating Temperature
105°C
Min Operating Temperature
-55°C
Mount
Through Hole, PCB
Package Quantity
200
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Ripple Current
1.48A
Ripple Current (AC)
1.48A
RoHS Compliant
Yes
Series
HD
Termination
Radial
Tolerance
20%
Voltage
16V
Voltage Rating
16V
DC Rated Voltage
16V
Compliance
RoHS
Compliant
Datasheet
Panasonic EEU-HD1C472 Datasheet
Download the complete datasheet for Panasonic EEU-HD1C472 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

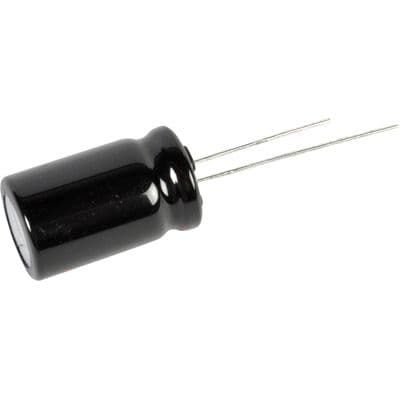

Product Images
