Automotive-grade thick film chip resistor, 0402 package size (1005 metric), offering 12k Ohm resistance with a tight 1% tolerance. Features a maximum power dissipation of 100mW (0.1W) and a wide operating temperature range of -55°C to +155°C. This surface mount component boasts 2 terminations with tin plating and is supplied in tape and reel packaging. Designed for automotive applications, it meets AEC-Q200 standards and operates at a DC rated voltage of 50V.
Package0402
Resistance12kR
Voltage Rating50V
MountingSurface Mount
Quick Jump:
Technical Specifications
Panasonic ERJ-2RKF1202X technical specifications.
General
| Case Code (Imperial) | 0402 |
| Case Code (Metric) | 1005 |
| Package/Case | 0402 |
| Construction | Rectangular |
| Contact Plating | Tin |
| Depth | 0.5mm |
| Features | Automotive AEC-Q200 |
| Height | 0.35mm |
| Lead Free | Lead Free |
| Length | 1mm |
| Max Operating Temperature | 155°C |
| Min Operating Temperature | -55°C |
| Max Power Dissipation | 100mW |
| Military Standard | Not |
| Mount | Surface Mount |
| Number of Terminations | 2 |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Reach SVHC Compliant | No |
| Resistance | 12kR |
| Resistance Tolerance | 1% |
| Resistor Type | Thick Film |
| RoHS Compliant | Yes |
| Series | ERJ |
| Size Code | 0402 |
| Technology | THICK FILM |
| Termination | SMD/SMT |
| Tolerance | 1% |
| Voltage Rating | 50V |
| DC Rated Voltage | 50V |
| Width | 0.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Panasonic ERJ-2RKF1202X Datasheet
Download the complete datasheet for Panasonic ERJ-2RKF1202X to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

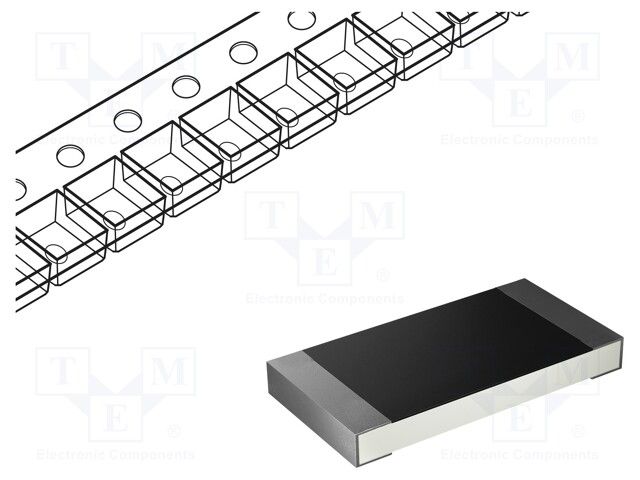

Product Images
