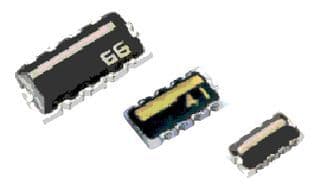

Surface mount RC network with 4 isolated channels, each featuring 47pF capacitance and 47 Ohm resistance. This component utilizes a 1608 (4021 metric) SMD/SMT package with a flat construction. Operating temperature range is -25°C to 85°C with a 25V voltage rating. The product is supplied on tape and reel.
Package1608
Voltage25V
Capacitance47pF
Resistance47R
Quick Jump:
Technical Specifications
Panasonic EZA-ST22AAAJ technical specifications.
General
| Capacitance | 47pF |
| Case Code (Imperial) | 1608 |
| Case Code (Metric) | 4021 |
| Package/Case | 1608 |
| Circuit Type | Isolated |
| Construction | Flat |
| Depth | 2.1mm |
| ESD Protection | No |
| Height | 0.65mm |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -25°C |
| Mount | Surface Mount |
| Number of Channels | 4 |
| Number of Contacts | 10 |
| Number of Elements | 4 |
| Number of Resistors | 4 |
| Package Quantity | 4000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Resistance | 47R |
| Resistance Tolerance | 5% |
| Series | EZA |
| Termination | SMD/SMT |
| Thickness | 650um |
| Tolerance | 30% |
| Voltage | 25V |
| Voltage Rating | 25V |
| Width | 9mm |
Compliance
| RoHS | Compliant |
