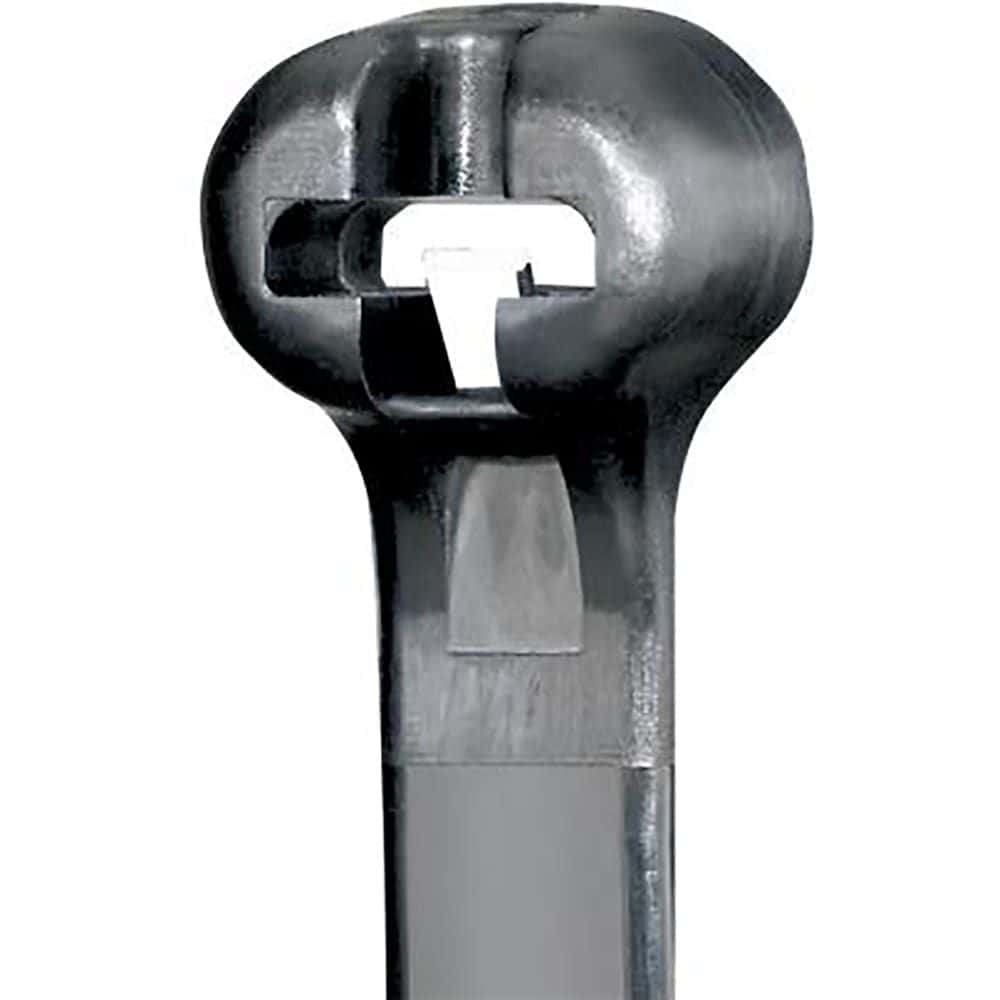

The Panduit BT8LH-L0 is a nylon cable tie with a black color, measuring 699mm in length. It has a temperature range of -40°C to 85°C and is designed for free hanging applications. The tie is made from nylon, a polyamide material known as PA66, and is part of the DOME-TOP BARB-TY BT series.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit BT8LH-L0 technical specifications.
General
| Body Material | Nylon |
| Color | Black |
| Depth | 13.2mm |
| Height | 0.32inch |
| Length | 699mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 50 |
| Packaging | Bulk |
| Series | DOME-TOP® BARB-TY® BT |
| Weight | 1.2lb |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit BT8LH-L0 Datasheet
Download the complete datasheet for Panduit BT8LH-L0 to view detailed technical specifications.
