Female, insulated, straight wire terminal designed for 22AWG wire. Features copper body and contact material with tin plating. Polypropylene insulation ensures reliable performance. Crimp termination method. Bulk packaging contains 500 units.
Quick Jump:
Technical Specifications
Panduit FSD75-8-D technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Color | White |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 3mm |
| Diameter | 1.52mm |
| Gender | Female |
| Inside Diameter | 1.02mm |
| Insulation | Insulated |
| Insulation Material | Polypropylene |
| Lead Free | Lead Free |
| Length | 13.5mm |
| Material | Copper, Polypropylene |
| Orientation | Straight |
| Package Quantity | 500 |
| Packaging | Bulk |
| Pin Length | 8mm |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Pan-Term® |
| Termination | Crimp |
| Weight | 1.6oz |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Panduit FSD75-8-D Datasheet
Download the complete datasheet for Panduit FSD75-8-D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

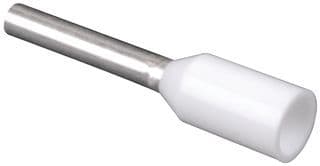

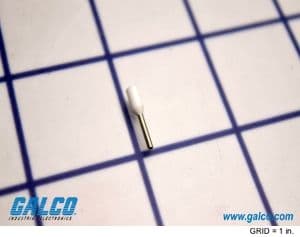

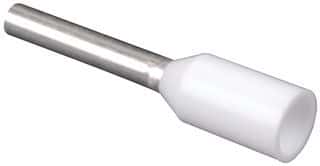

Product Images
