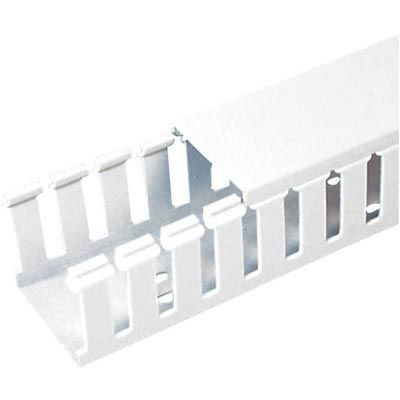

Panduit's PANDUCT Type G cable duct is a white, PVC-based product with a flammability rating of UL94 V-0. It measures 72inch in length, 2.25inch in width, and weighs 10.77lb. The duct is mountable via screw or adhesive and is not radiation hardened. It is compliant with RoHS regulations.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit G2X2WH6-A datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit G2X2WH6-A technical specifications.
| Color | White |
| Depth | 57.2mm |
| Flammability Rating | UL94 V-0 |
| Height | 53.8mm |
| Length | 72inch |
| Material | PVC, Poly, Vinyl, Polyvinyl, Lead, Polyvinylchloride |
| Mount | Screw, Adhesive |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PANDUCT® Type G |
| Weight | 10.77lb |
| Width | 2.25inch |
| RoHS | Compliant |
Download the complete datasheet for Panduit G2X2WH6-A to view detailed technical specifications.
