Panduit's HSTT25-Q45 heat shrink tubing is made from polyolefin material with a maximum operating temperature of 135°C and a minimum operating temperature of -55°C. It is available in a green and yellow color with a diameter of 6.35mm and a length of 25 feet. The tubing is packaged in bulk quantities and weighs approximately 8.8 ounces per unit.
Quick Jump:
Technical Specifications
Panduit HSTT25-Q45 technical specifications.
General
| Body Material | Polyolefin |
| Color | Green, Yellow |
| Diameter | 6.35mm |
| Inside Diameter | 0.25inch |
| Length | 25foot |
| Material | PO, Polyolefin |
| Max Operating Temperature | 135°C |
| Min Operating Temperature | -55°C |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | HSTT |
| Weight | 8.800001oz |
Compliance
| RoHS | Not Compliant |
Datasheet
Panduit HSTT25-Q45 Datasheet
Download the complete datasheet for Panduit HSTT25-Q45 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

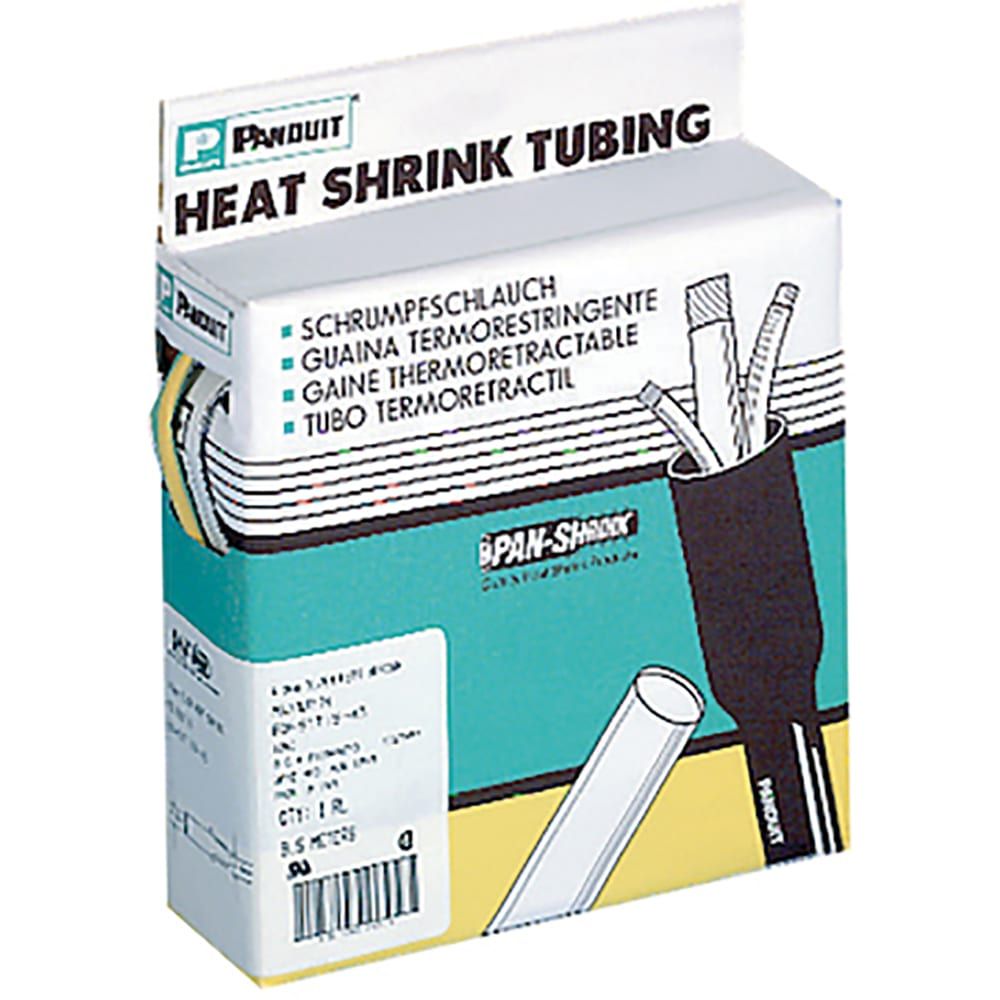

Product Images
