Female wire terminal featuring a straight, fully insulated nylon construction. Brass body and contact material, both tin-plated, support a 15A current rating. Designed for wire mounting with a 6.86mm inside diameter and 3.05mm diameter, accommodating wire gauges from 14AWG to 22AWG. This bulk-packaged component offers a single contact and wire entry, with a length of 0.78 inches.
Current Rating15A
MountingWire
Quick Jump:
Technical Specifications
Panduit JN218-216-C technical specifications.
General
| Body Material | Brass |
| Body Plating | Tin |
| Color | Natural, Clear |
| Contact Material | Brass |
| Contact Plating | Tin |
| Current Rating | 15A |
| Diameter | 3.05mm |
| Gender | Female |
| Inside Diameter | 6.86mm |
| Insulation | Fully Insulated |
| Insulation Material | Nylon |
| Lead Free | Lead Free |
| Length | 0.78inch |
| Material | Brass |
| Mount | Wire |
| Number of Contacts | 1 |
| Number of Wire Entries | 1 |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Pan-Term® |
| Termination | Crimp |
| Weight | 2.72oz |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 22AWG |
Compliance
| RoHS | Compliant |
Datasheet
Panduit JN218-216-C Datasheet
Download the complete datasheet for Panduit JN218-216-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

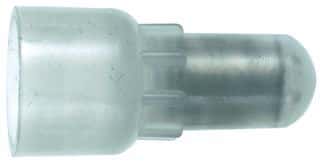

Product Images
