The Pan-Steel MLT Series cable tie is made from stainless steel with a silver and natural finish. It has a maximum operating temperature range of -80°C to 538°C and is available in a package quantity of 100. The tie is lead free and not halogen free. It is available in a bag packaging and has a weight of 6.72oz. The cable tie is unshielded and has a thickness of 0.25mm and a width of 4.6mm.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit MLT1S-CP technical specifications.
General
| Body Material | Stainless Steel |
| Package/Case | Metal |
| Color | Silver, Natural |
| Halogen Free | Not Halogen Free |
| Height | 127mm |
| Lead Free | Lead Free |
| Length | 127mm |
| Material | Stainless Steel |
| Max Operating Temperature | 538°C |
| Min Operating Temperature | -80°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| Series | Pan-Steel® MLT |
| Shielding | Unshielded |
| Thickness | 0.25mm |
| Weight | 6.72oz |
| Width | 4.6mm |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit MLT1S-CP Datasheet
Download the complete datasheet for Panduit MLT1S-CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

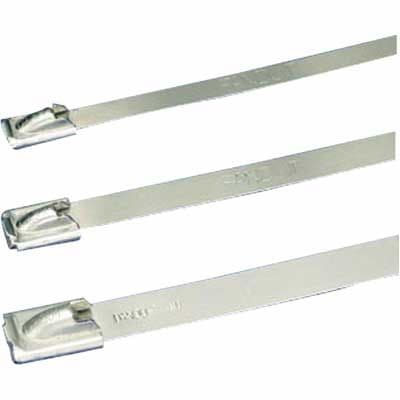

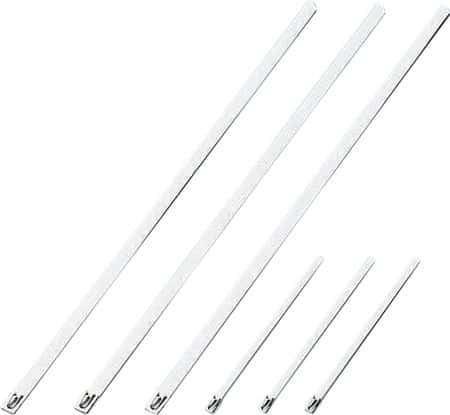

Product Images
