Self-locking stainless steel cable tie, 201mm length, 4.6mm width, and 0.25mm thickness. Features a robust stainless steel body and a metal package, offering a tensile strength of 890N. Operates effectively across a wide temperature range from -80°C to 538°C. Designed for free-hanging mounting and suitable for wire/cable diameters up to 50mm.
PackageMetal
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit MLT2S-CP technical specifications.
General
| Body Material | Stainless Steel |
| Package/Case | Metal |
| Color | Silver, Natural |
| Depth | 6.1mm |
| Halogen Free | Not Halogen Free |
| Lead Free | Lead Free |
| Length | 201mm |
| Material | Stainless Steel |
| Max Operating Temperature | 538°C |
| Min Operating Temperature | -80°C |
| Mount | Free Hanging |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | Pan-Steel® MLT |
| Shielding | Unshielded |
| Thickness | 0.25mm |
| Weight | 9oz |
| Width | 4.6mm |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 50mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit MLT2S-CP Datasheet
Download the complete datasheet for Panduit MLT2S-CP to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

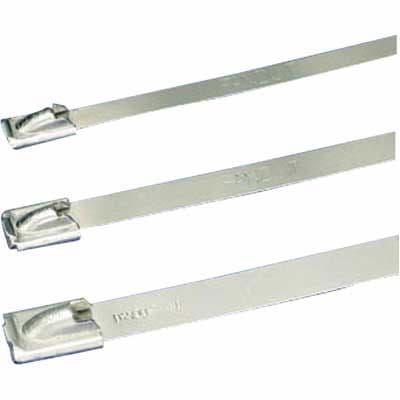

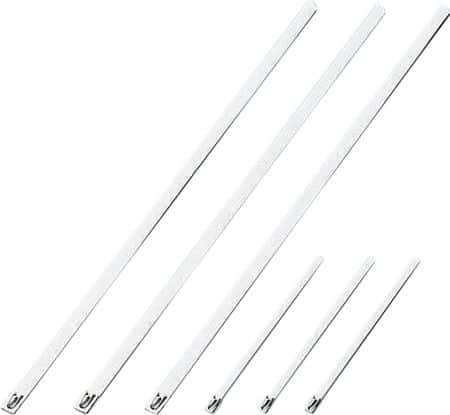

Product Images
