Non-insulated ring terminals for 14-18 AWG wire, featuring a straight, free-hanging orientation. Constructed from copper with tin plating for both body and contact material. These terminals offer a 30.5mm length, 18.3mm width, and 18.3mm depth, with a 0.03-inch thickness. Supplied in bulk packaging with 50 units per package, these components are RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit P14-12R-L technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Blue
Contact Material
Copper
Contact Plating
Tin
Depth
18.3mm
Insulation
Non-Insulated
Length
30.5mm
Material
Copper
Mount
Free Hanging
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Pan-Term®
Termination
Crimp
Thickness
0.03inch
Weight
4.16oz
Width
18.3mm
Wire Gauge (Max)
18AWG
Wire Gauge (Min)
14AWG
Wire/Cable Gauge
14AWG
Compliance
RoHS
Compliant
Datasheet
Panduit P14-12R-L Datasheet
Download the complete datasheet for Panduit P14-12R-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

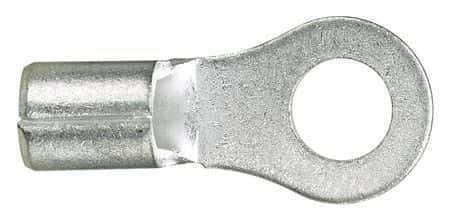

Product Images
