Ring tongue terminal for 14-18 AWG wire, featuring a 23.1mm length and 4.06mm diameter. Constructed from tin-plated copper for both body and contact material, this non-insulated, female terminal offers a 2.29mm inside diameter. Designed for crimp termination and free-hanging mounting, it is RoHS compliant and packaged in bulk quantities of 1000.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit P14-56R-M technical specifications.
General
| Body Material | Copper |
| Body Plating | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 11.7mm |
| Diameter | 4.06mm |
| Gender | Female |
| Inside Diameter | 2.29mm |
| Insulation | Non-Insulated |
| Length | 23.1mm |
| Material | Copper |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Pan-Term® |
| Termination | Crimp |
| Thickness | 0.03inch |
| Weight | 2.33lb |
| Width | 0.46inch |
| Wire Gauge (Max) | 18AWG |
| Wire Gauge (Min) | 14AWG |
| Wire/Cable Gauge | 14AWG |
Compliance
| RoHS | Compliant |
Datasheet
Panduit P14-56R-M Datasheet
Download the complete datasheet for Panduit P14-56R-M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

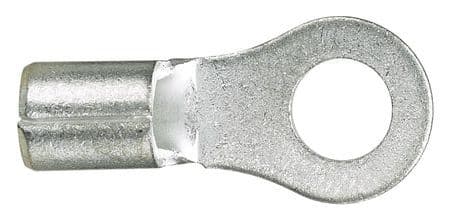

Product Images
