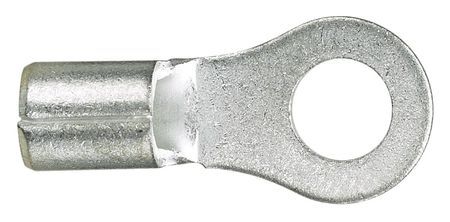

This female copper terminal features a crimp termination and is designed for use with wire gauges ranging from 22 to 26 AWG. It has a non-insulated design and is made from copper with a tin plating. The terminal is available in bulk packaging with 1000 units per package. It is compliant with RoHS regulations and is suitable for general use.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit P22-4R-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Copper |
| Body Plating | Tin |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 5.2mm |
| Diameter | 2.03mm |
| Gender | Female |
| Inside Diameter | 1.27mm |
| Insulation | Non-Insulated |
| Length | 13.2mm |
| Material | Copper |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | Pan-Term® |
| Termination | Crimp |
| Weight | 6.72oz |
| Width | 0.2inch |
| Wire Gauge (Max) | 26AWG |
| Wire Gauge (Min) | 22AWG |
| Wire/Cable Gauge | 22AWG |
| RoHS | Compliant |
