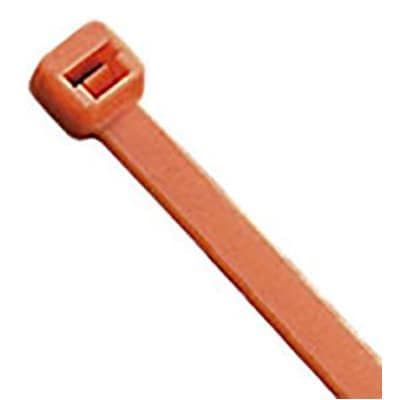

The Panduit PLT13H-C3 is a nylon cable tie with a bundle diameter of 13inch and a maximum operating temperature of 85°C. It is designed for free hanging applications and is available in a package quantity of 100. The tie is made from nylon and polyamide materials, with a weight of 0.752oz. The cable tie has a length of 1100mm and a width of 0.35inch, with a height of 0.34inch and a depth of 14.2mm. It is available in orange color and is not radiation hardened.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT13H-C3 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Body Material | Nylon |
| Bundle Diameter | 13inch |
| Color | Orange |
| Depth | 14.2mm |
| Height | 0.34inch |
| Length | 1100mm |
| Material | Nylon, Polyamide |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | PAN-TY® PLT |
| Weight | 0.752oz |
| Width | 0.35inch |
| RoHS | Compliant |
Download the complete datasheet for Panduit PLT13H-C3 to view detailed technical specifications.
