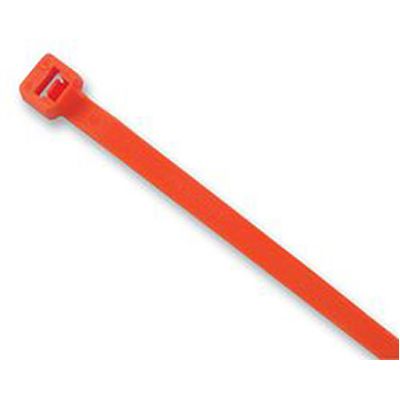

The PAN-TY PLT1M-M53 cable tie is constructed from nylon and polyamide materials. It features a bundle diameter of 0.87 inch and a depth of 4.6 mm. The tie measures 99 mm in length and 2.5 mm in width, with a height of 0.154 inch. It is designed for free hanging applications and operates within a temperature range of -40°C to 115°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT1M-M53 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PLT1M-M53 technical specifications.
| Body Material | Nylon |
| Bundle Diameter | 0.87inch |
| Color | Orange |
| Depth | 4.6mm |
| Height | 0.154inch |
| Length | 99mm |
| Material | Nylon, Polyamide |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Series | PAN-TY® PLT |
| Weight | 11.360001oz |
| Width | 2.5mm |
| RoHS | Compliant |
