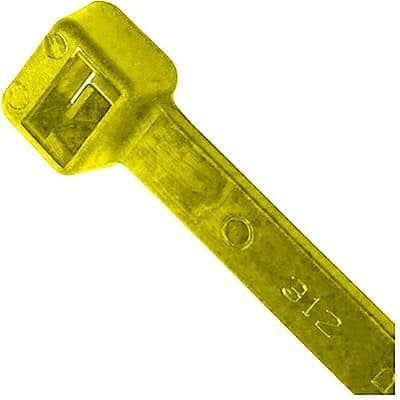

The PAN-TY PLT1M-M54 cable tie is made from nylon material with a yellow color. It has a maximum operating temperature of 115°C and a minimum operating temperature of -40°C. The cable tie is available in a package quantity of 1000 and is packaged in bulk. It has a bundle diameter of 0.87inch and a depth of 4.6mm, with a height of 0.154inch and a width of 2.5mm. It is designed for free hanging mount and is part of the PAN-TY PLT series.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT1M-M54 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PLT1M-M54 technical specifications.
| Body Material | Nylon |
| Bundle Diameter | 0.87inch |
| Color | Yellow |
| Depth | 4.6mm |
| Height | 0.154inch |
| Length | 99mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 115°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Series | PAN-TY® PLT |
| Weight | 0.016oz |
| Width | 2.5mm |
| RoHS | Compliant |
