The PAN-TY PLT1S-C cable tie is made from nylon, polyamide, with a bundle diameter of 1 inch and a weight of 3.68 oz. It has a length of 122mm, a width of 4.8mm, and a height of 0.22 inch. The cable tie is designed for free hanging mount and is available in a package quantity of 100. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT1S-C technical specifications.
General
| Body Material | Nylon, Polyamide |
| Bundle Diameter | 1inch |
| Package/Case | 100 |
| Color | Natural, Beige |
| Depth | 8mm |
| Height | 0.22inch |
| Length | 122mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Weight | 3.68oz |
| Width | 4.8mm |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 25mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT1S-C Datasheet
Download the complete datasheet for Panduit PLT1S-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

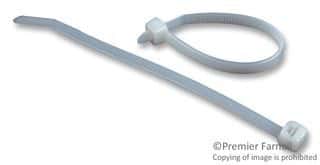

Product Images
