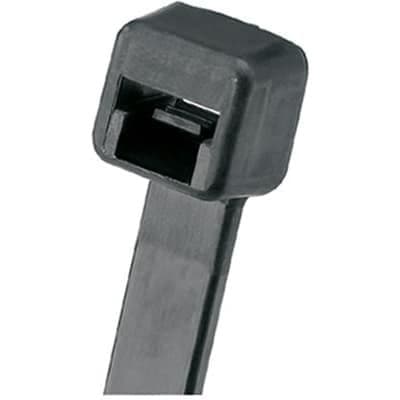

The PAN-TY PLT1S-M cable tie is constructed from nylon with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It measures 122mm in length and has a bundle diameter of 1 inch. The tie is packaged in bags of 1000 units and is suitable for use in free hanging applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT1S-M datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PLT1S-M technical specifications.
| Body Material | Nylon |
| Bundle Diameter | 1inch |
| Color | Natural |
| Depth | 8mm |
| Height | 5.6mm |
| Length | 122mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bag |
| Series | PAN-TY® PLT |
| Weight | 1.71lb |
| Width | 4.8mm |
| RoHS | Compliant |
Download the complete datasheet for Panduit PLT1S-M to view detailed technical specifications.
