ETFE cable tie, 203mm length and 3.4mm width, designed for wire and cable management. Features a maximum operating temperature of 170°C and a minimum of -46°C, with a bundle diameter capacity of 2 inches. The blue colored tie has a depth of 6.1mm and a height of 4.6mm, suitable for free-hanging mounting.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT2I-C76 technical specifications.
General
| Body Material | ETFE, Tetrafluoroethylene |
| Bundle Diameter | 2inch |
| Color | Blue |
| Depth | 6.1mm |
| Halogen Free | Not Halogen Free |
| Height | 4.6mm |
| Length | 203mm |
| Material | ETFE, Tetrafluoroethylene |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -46°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Weight | 5.12oz |
| Width | 3.4mm |
| Wire/Cable Color | Blue |
| Wire/Cable Diameter | 51mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT2I-C76 Datasheet
Download the complete datasheet for Panduit PLT2I-C76 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

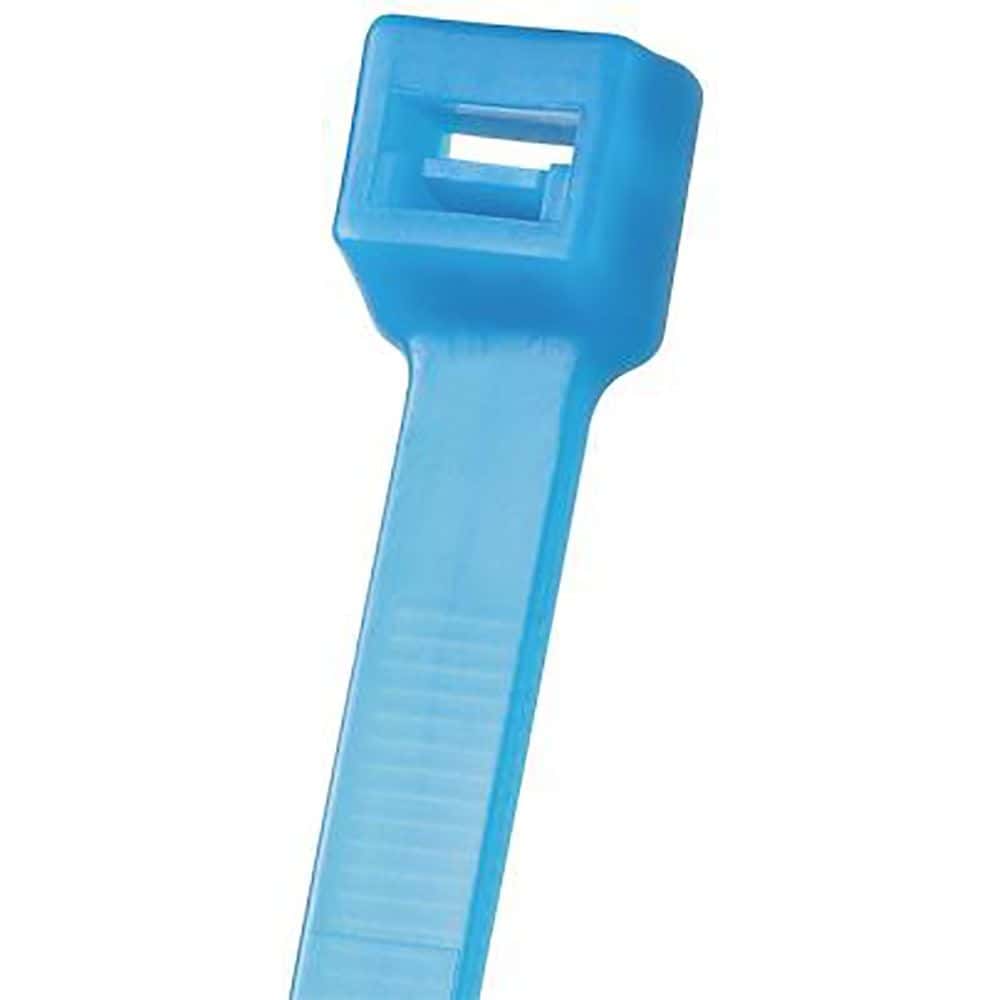

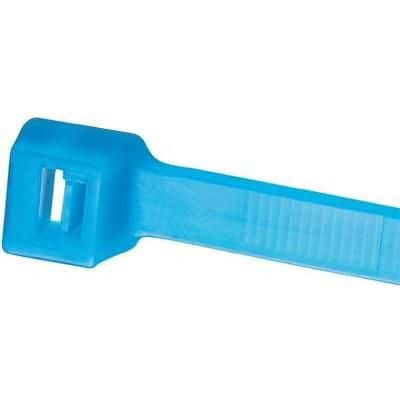

Product Images
