The PAN-TY PLT2S-C cable tie is made from nylon, polyamide, and PA66 materials, with a bundle diameter of 47.8mm and a length of 188mm. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The cable tie is designed for free hanging and is available in bulk packaging. It is lead free and not halogen free, and is not compliant with Reach SVHC regulations.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT2S-C technical specifications.
General
| Body Material | Nylon, Polyamide |
| Bundle Diameter | 47.8mm |
| Package/Case | 100 |
| Color | Natural, Clear |
| Depth | 8mm |
| Halogen Free | Not Halogen Free |
| Height | 0.22inch |
| Lead Free | Lead Free |
| Length | 188mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Shielding | Unshielded |
| Thickness | 1.3mm |
| Weight | 4.64oz |
| Width | 4.8mm |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 48mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT2S-C Datasheet
Download the complete datasheet for Panduit PLT2S-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

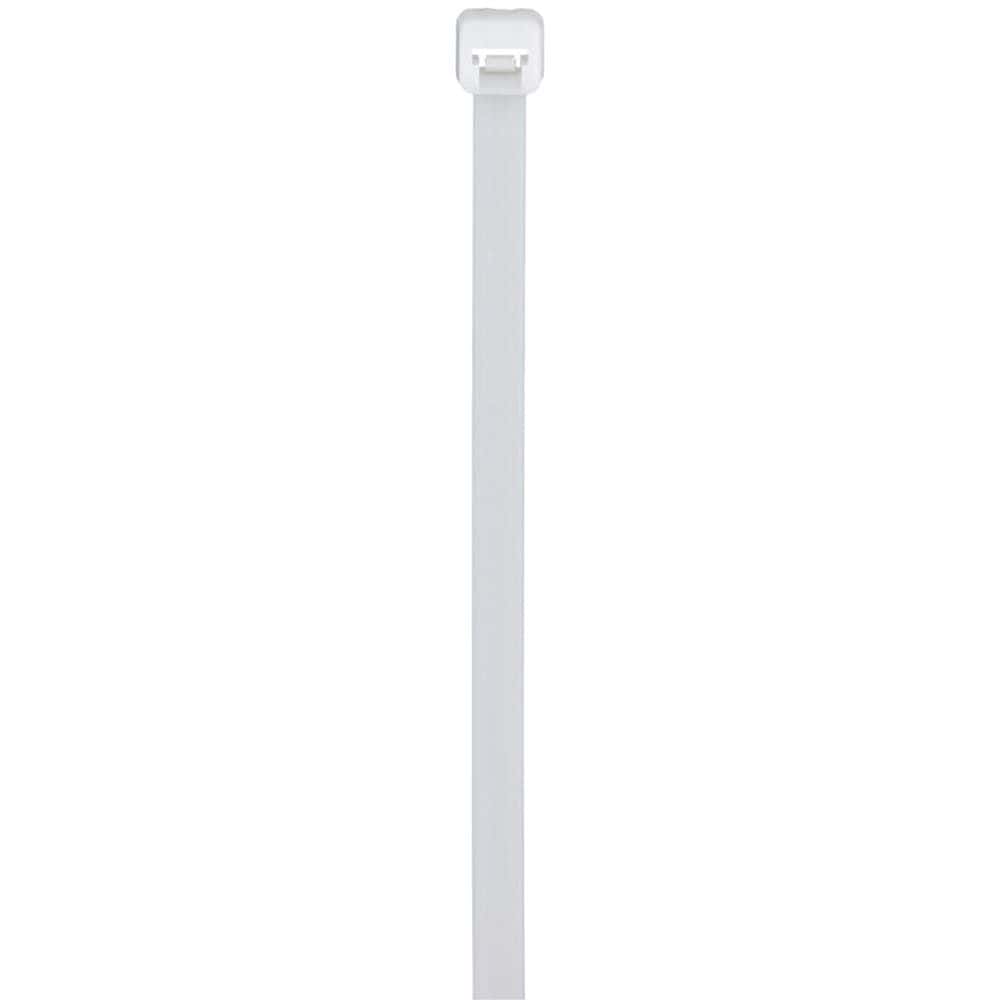

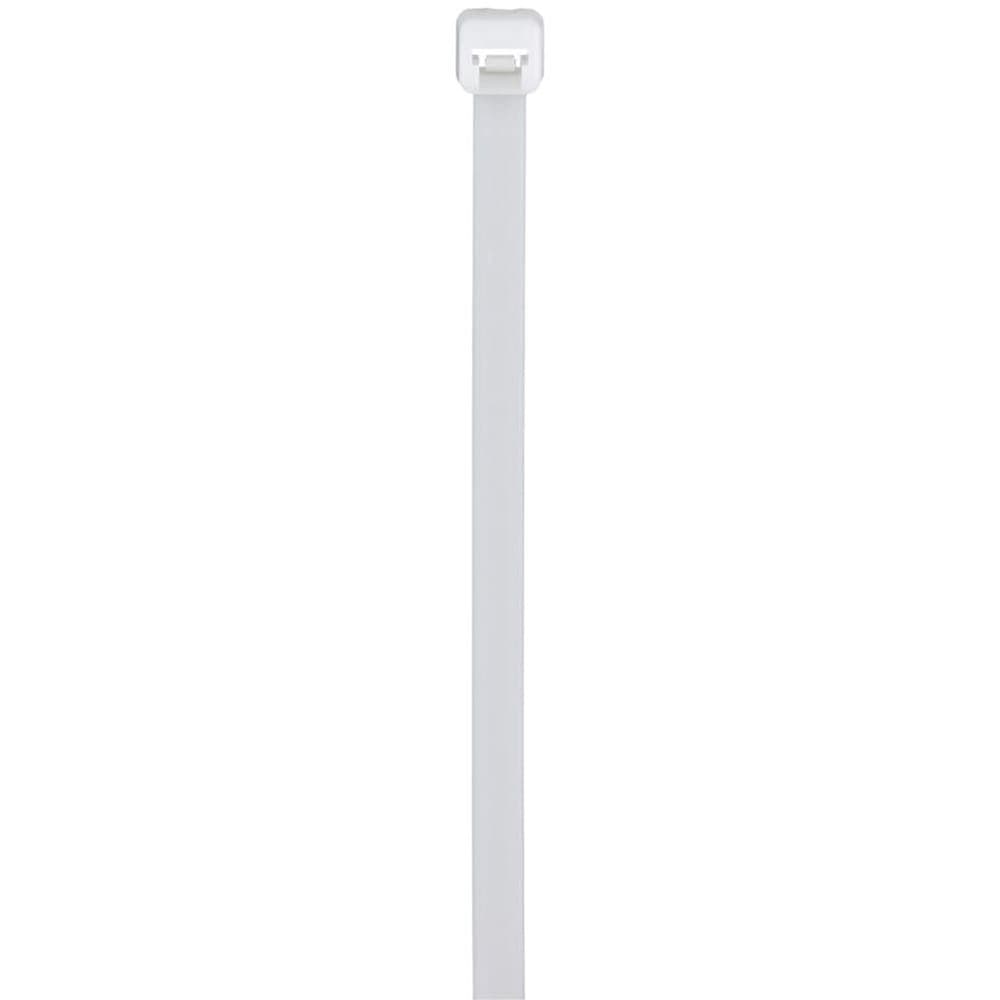

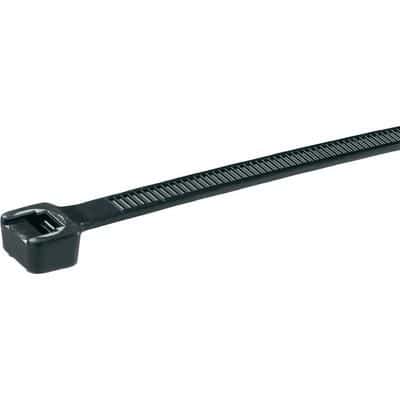

Product Images
