The Panduit PLT2S-M5 is a nylon cable tie with a green color, 188mm length, and 4.8mm width. It is designed for use in temperatures ranging from -40°C to 85°C. The tie is made from a nylon material, specifically polyamide PA66, and has a bundle diameter of 1.88inch. It is available in a bulk packaging quantity of 1000 units and weighs 2.58lb. The cable tie is suitable for free hanging applications.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT2S-M5 technical specifications.
General
| Body Material | Nylon |
| Bundle Diameter | 1.88inch |
| Color | Green |
| Depth | 8mm |
| Height | 0.22inch |
| Length | 188mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Series | PAN-TY® PLT |
| Weight | 2.58lb |
| Width | 4.8mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT2S-M5 Datasheet
Download the complete datasheet for Panduit PLT2S-M5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

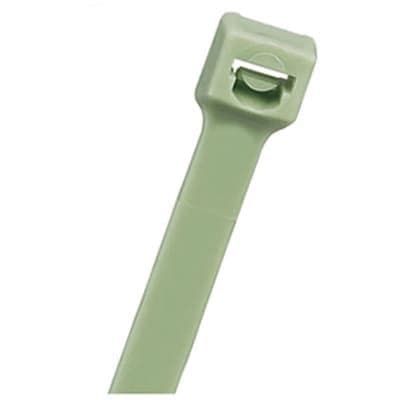

Product Images
