Technical Specifications
Panduit PLT3H-L76 technical specifications.
General
| Body Material | ETFE, Tetrafluoroethylene |
| Bundle Diameter | 3inch |
| Color | Blue |
| Depth | 12.2mm |
| Halogen Free | Not Halogen Free |
| Height | 7.4mm |
| Length | 290mm |
| Material | ETFE, Tetrafluoroethylene |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -46°C |
| Mount | Free Hanging |
| Package Quantity | 50 |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Weight | 13.280001oz |
| Width | 7.6mm |
| Wire/Cable Color | Blue |
| Wire/Cable Diameter | 78mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT3H-L76 Datasheet
Download the complete datasheet for Panduit PLT3H-L76 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

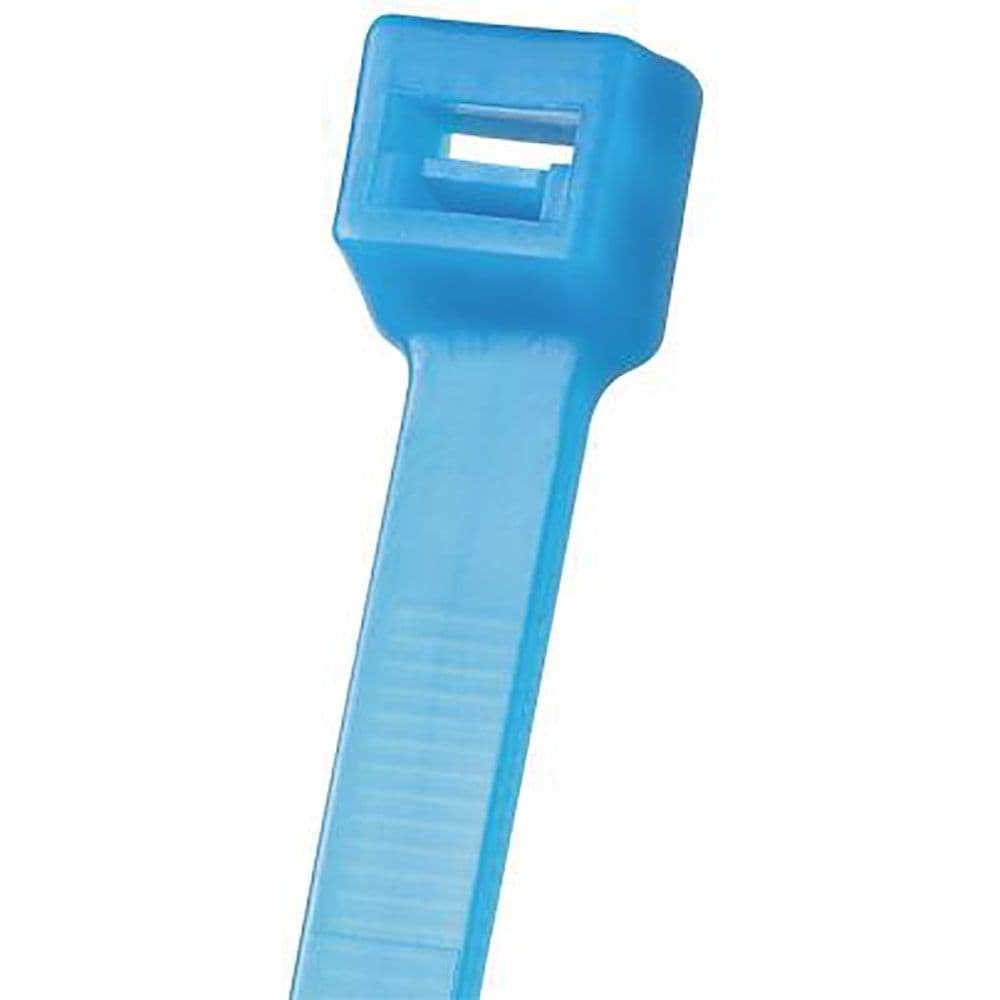

Product Images
