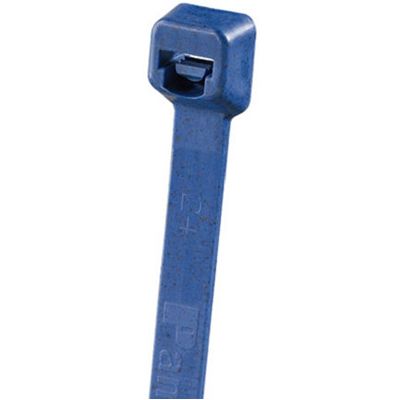

The PAN-TY PLT3I-M6 cable tie is made from nylon and polyamide materials, with a blue color and a bundle diameter of 3 inches. It measures 290mm in length and has a depth of 6.6mm, a height of 4.6mm, and a width of 3.7mm. The cable tie is designed for free-hanging applications and has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT3I-M6 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PLT3I-M6 technical specifications.
| Body Material | Nylon |
| Bundle Diameter | 3inch |
| Color | Blue |
| Depth | 6.6mm |
| Height | 4.6mm |
| Length | 290mm |
| Material | Nylon, Polyamide |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 1000 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Series | PAN-TY® PLT |
| Weight | 0.048oz |
| Width | 3.7mm |
| RoHS | Compliant |
