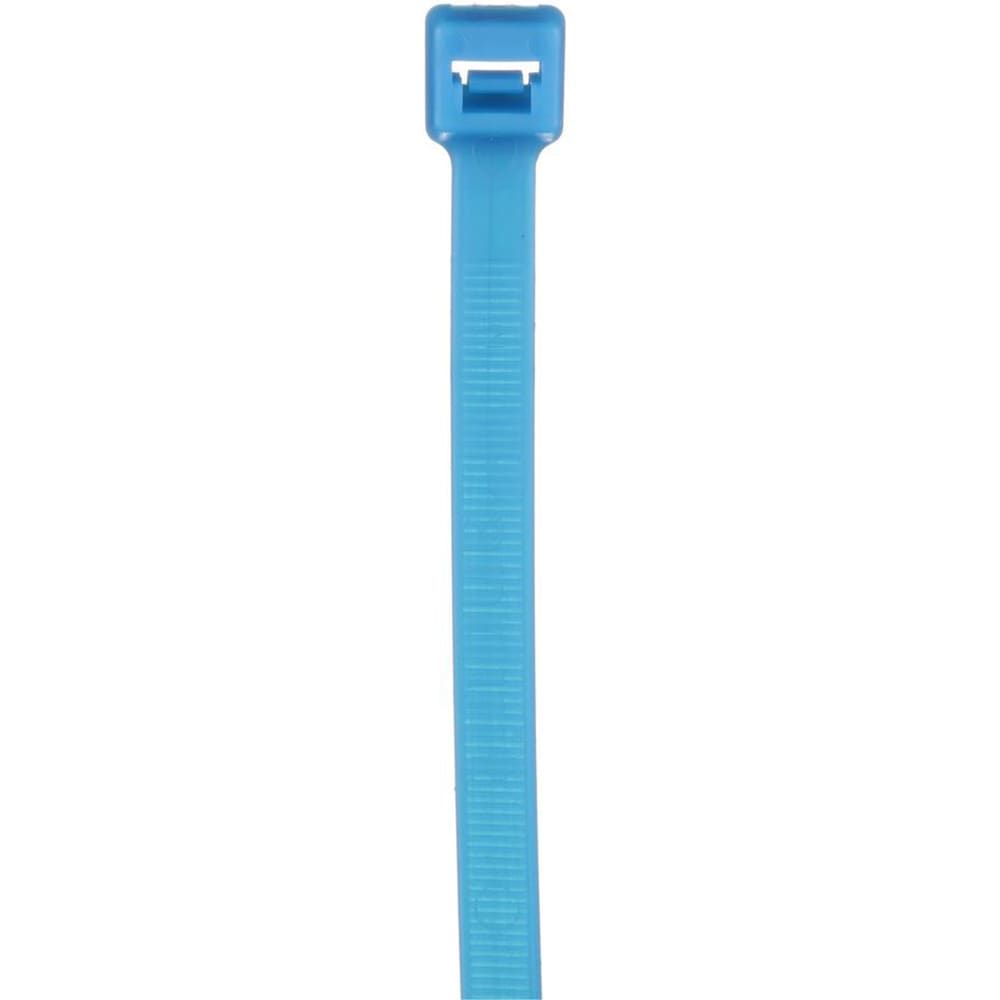

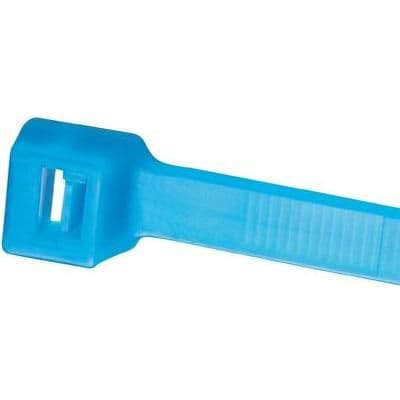

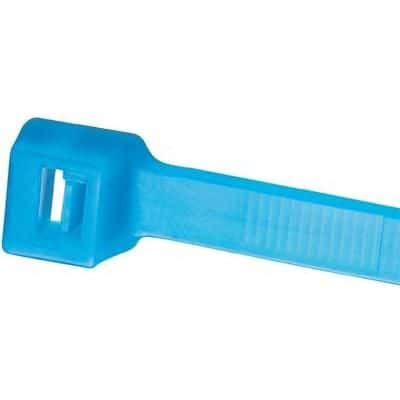

ETFE cable tie, 371mm length and 7.6mm width, designed for bundle diameters up to 102mm. Features a maximum operating temperature of 170°C and a minimum of -46°C. Constructed from ETFE (Ethylene Tetrafluoroethylene) material, this blue tie offers a free-hanging mount.
Package120
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT4H-L76 technical specifications.
General
| Body Material | ETFE, Tetrafluoroethylene |
| Bundle Diameter | 4inch |
| Package/Case | 120 |
| Color | Blue |
| Depth | 12.1mm |
| Halogen Free | Not Halogen Free |
| Height | 7.4mm |
| Length | 371mm |
| Material | ETFE, Tetrafluoroethylene |
| Max Operating Temperature | 170°C |
| Min Operating Temperature | -46°C |
| Mount | Free Hanging |
| Package Quantity | 50 |
| Packaging | Bag |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Weight | 1.05lb |
| Width | 7.6mm |
| Wire/Cable Color | Blue |
| Wire/Cable Diameter | 102mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT4H-L76 Datasheet
Download the complete datasheet for Panduit PLT4H-L76 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
Product Images
