The PAN-TY PLT4I-C0 cable tie is a nylon component with a 368mm length and 4inch bundle diameter. It features a black color and is made from nylon, polyamide, and PA66 materials. The cable tie has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is designed for free hanging applications and is packaged in bags of 100 units.
Package100
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PLT4I-C0 technical specifications.
General
| Body Material | Nylon, Polyamide |
| Bundle Diameter | 4inch |
| Package/Case | 100 |
| Color | Black |
| Depth | 6.6mm |
| Height | 4.6mm |
| Length | 368mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| Series | PAN-TY® PLT |
| Weight | 7.36oz |
| Width | 3.7mm |
| Wire/Cable Color | Black |
| Wire/Cable Diameter | 102mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit PLT4I-C0 Datasheet
Download the complete datasheet for Panduit PLT4I-C0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

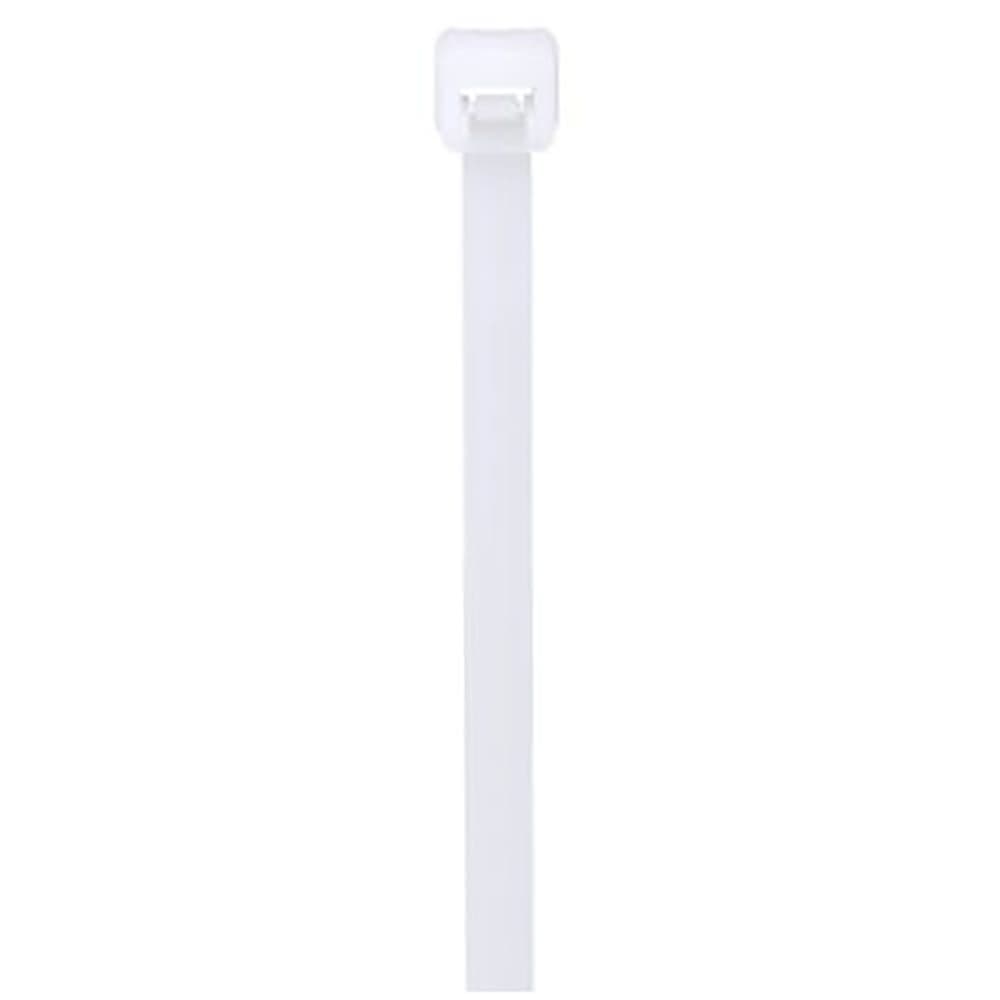

Product Images
