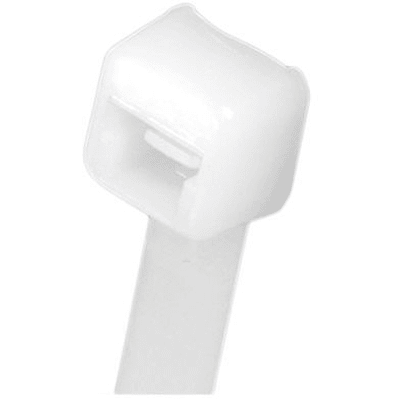

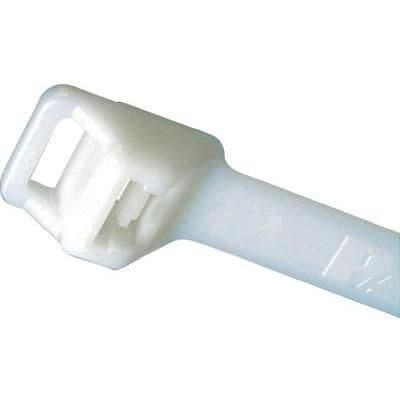

The PAN-TY PLT5EH-C cable tie is made from nylon with a bundle diameter of 5inch and a length of 511mm. It has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. The cable tie is packaged in bulk with 100 units per package and is suitable for free hanging applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PLT5EH-C datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PLT5EH-C technical specifications.
| Body Material | Nylon |
| Bundle Diameter | 5inch |
| Color | Natural, Beige |
| Depth | 20.3mm |
| Halogen Free | Not Halogen Free |
| Height | 10.2mm |
| Length | 511mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bulk |
| Series | PAN-TY® PLT |
| Weight | 0.512oz |
| Width | 0.5inch |
| RoHS | Compliant |
