Insulated fork terminal for 10-14 AWG copper wire. Features a tin-plated copper body and contact for enhanced conductivity and corrosion resistance. Yellow vinyl insulation provides electrical protection with a maximum insulation diameter of 0.225 inches. Straight, free-hanging orientation with a crimp termination method. RoHS compliant.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit PV10-14F-L technical specifications.
General
Body Material
Copper
Body Plating
Tin
Color
Yellow
Contact Material
Copper
Contact Plating
Tin
Depth
12.45mm
Insulation
Insulated
Insulation Color
Yellow
Insulation Diameter
0.225inch
Insulation Material
Vinyl
Length
1.14inch
Material
Copper
Mount
Free Hanging
Orientation
Straight
Package Quantity
50
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
Pan-Term®
Terminal Material
Copper
Termination
Crimp
Weight
4.32oz
Width
12.4mm
Wire Gauge (Max)
12AWG
Wire Gauge (Min)
10AWG
Wire/Cable Gauge
10AWG
Compliance
RoHS
Compliant
Datasheet
Panduit PV10-14F-L Datasheet
Download the complete datasheet for Panduit PV10-14F-L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

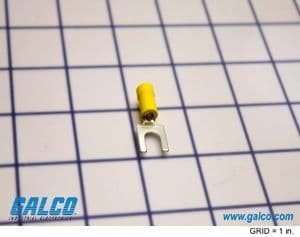

Product Images
