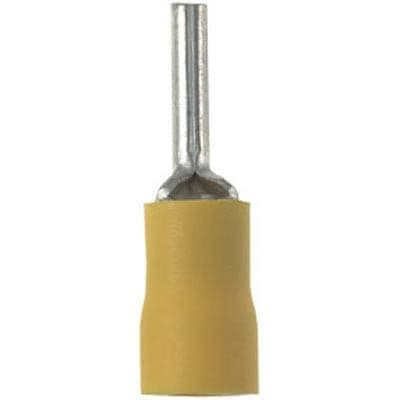

This cable mount terminal features copper contacts with a tin plating, insulated with vinyl and available in a maximum wire gauge of 12AWG. The terminal is packaged in bulk quantities of 50 units. It is not compliant with RoHS or SVHC regulations. The terminal has a straight orientation and a length of 1.1inch, with a pin length of 0.55inch and a diameter of 0.1inch.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PV10-P55-LY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Color | Yellow |
| Contact Material | Copper |
| Contact Plating | Tin |
| Insulation | Insulated |
| Insulation Diameter | 0.25inch |
| Insulation Material | Vinyl |
| Length | 1.1inch |
| Orientation | Straight |
| Package Quantity | 50 |
| Packaging | Bulk |
| Pin Diameter | -0.1inch |
| Pin Length | 0.55inch |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Terminal Material | Copper |
| Termination | Crimp |
| Wire Gauge (Max) | 12AWG |
| Wire Gauge (Min) | 10AWG |
| Wire/Cable Gauge | 12AWG |
| RoHS | Not Compliant |
