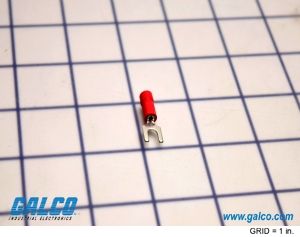

Insulated fork terminal featuring a straight, free-hanging orientation. Constructed with a copper body and contact material, both plated with tin for enhanced conductivity and corrosion resistance. The terminal accommodates wire gauges from 18 to 22 AWG, with a primary wire/cable gauge of 16 AWG, utilizing a crimp termination method. Its red vinyl insulation provides electrical protection, with an insulation diameter of 0.15 inches. RoHS compliant and supplied in bulk packaging of 100 units.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Panduit PV18-8F-CY datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Panduit PV18-8F-CY technical specifications.
| Body Material | Copper |
| Body Plating | Tin |
| Color | Red |
| Contact Material | Copper |
| Contact Plating | Tin |
| Depth | 8.1mm |
| Insulation | Insulated |
| Insulation Color | Red |
| Insulation Diameter | 0.15inch |
| Insulation Material | Vinyl |
| Length | 0.93inch |
| Mount | Free Hanging |
| Orientation | Straight |
| Package Quantity | 100 |
| Packaging | Bulk |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | Pan-Term® |
| Terminal Material | Copper |
| Termination | Crimp |
| Weight | 3.84oz |
| Wire Gauge (Max) | 22AWG |
| Wire Gauge (Min) | 18AWG |
| Wire/Cable Gauge | 16AWG |
| RoHS | Compliant |
