The Panduit SST1M-C is a nylon cable tie with a length of 102mm and a diameter of 20mm. It is made from a nylon material with a polyamide, PA66 composition. The cable tie has a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It is designed for free hanging applications and is packaged in bags of 100 units.
MountingFree Hanging
Quick Jump:
Technical Specifications
Panduit SST1M-C technical specifications.
General
| Body Material | Nylon |
| Bundle Diameter | 0.78inch |
| Color | Natural |
| Depth | 4.5mm |
| Height | 3.8mm |
| Length | 102mm |
| Material | Nylon, Polyamide, PA66 |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Mount | Free Hanging |
| Package Quantity | 100 |
| Packaging | Bag |
| Reach SVHC Compliant | No |
| Series | STA-STRAP® SS |
| Weight | 1.28oz |
| Width | 0.095inch |
| Wire/Cable Color | Natural |
| Wire/Cable Diameter | 20mm |
Compliance
| RoHS | Compliant |
Datasheet
Panduit SST1M-C Datasheet
Download the complete datasheet for Panduit SST1M-C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

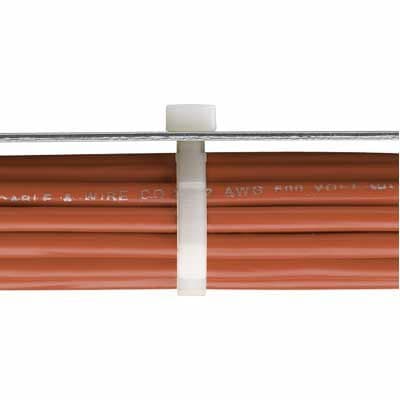

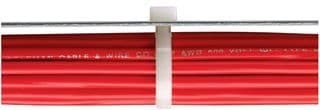

Product Images
