Octal D-Type Flip-Flop with 3-STATE Outputs, featuring 8 bits and positive edge clock triggering. This CMOS logic IC operates with a supply voltage range of 2V to 5.5V, supporting a maximum frequency of 75MHz. It offers 8 output lines with a 3-STATE configuration and a high level output current of -8mA, and low level output current of 8mA. Packaged in a TSSOP with gold contact plating, this surface mount component is RoHS compliant and operates within a temperature range of -40°C to 85°C.
Frequency75MHz
PackageTSSOP
MountingSurface Mount
PolarityNon-Inverting
Quick Jump:
Technical Specifications
Onsemi 74VHC574MTC technical specifications.
General
| Package/Case | TSSOP |
| Clock Edge Trigger Type | Positive Edge |
| Contact Plating | Gold |
| Frequency | 75MHz |
| Height | 0.9mm |
| High Level Output Current | -8mA |
| Input Capacitance | 4pF |
| Input Type | SINGLE-ENDED |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Logic Function | D-Type, Flip-Flop |
| Low Level Output Current | 8mA |
| Max Frequency | 75MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Number of Bits per Element | 8 |
| Number of Circuits | 8 |
| Number of Elements | 1 |
| Number of Functions | 1 |
| Number of Input Lines | 2 |
| Number of Output Lines | 8 |
| Output Current | 8mA |
| Output Type | 3-STATE |
| Package Quantity | 73 |
| Packaging | Rail/Tube |
| Polarity | Non-Inverting |
| Propagation Delay | 10.6ns |
| Quiescent Current | 4uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 74VHC |
| Supply Voltage-Nom | 5.5V |
| Technology | CMOS |
| Turn-On Delay Time | 19ns |
| Weight | 0.191g |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Onsemi 74VHC574MTC Datasheet
Download the complete datasheet for Onsemi 74VHC574MTC to view detailed technical specifications.
No datasheet is available for this part.

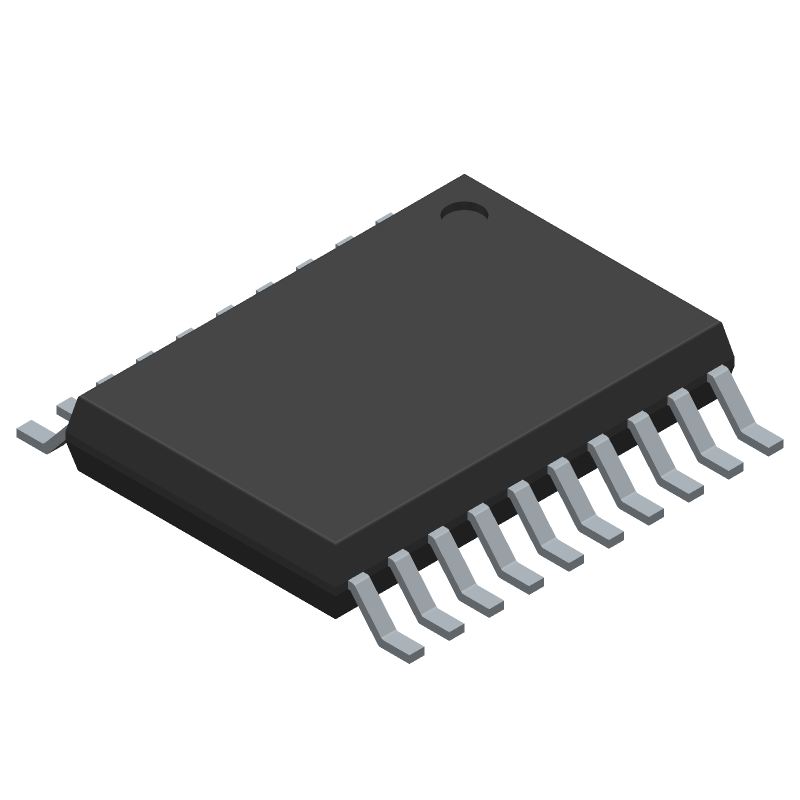

Product Images
