32-bit ARM Cortex-M3 microcontroller featuring 32KB Flash memory and 6KB RAM. Operates at up to 36MHz with a 32-bit address and data bus. Offers 26 programmable I/Os, 10 ADC channels, and multiple interfaces including I2C, SPI, and USART. This surface-mount MCU is housed in a UFQFPN package, supporting a supply voltage range of 2V to 3.6V and operating temperatures from -40°C to 85°C. Integrated peripherals include POR, PWM, WDT, DMA, and a temperature sensor.
Frequency36MHz
PackageUFQFPN
MountingSurface Mount
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101T6U6 technical specifications.
General
Address Bus Width
32b
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Frequency
36MHz
Height
0.95mm
Interface
I2C, SPI, USART, IrDA, UART
Lead Free
Lead Free
Length
6mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Max Power Dissipation
1.11W
Max Supply Voltage
3.6V
Memory Size
32KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Min Supply Voltage
2V
Mount
Surface Mount
Number of ADC Channels
10
Number of I/Os
26
Number of I2C Channels
1
Number of Programmable I/O
26
Number of PWM Channels
4
Number of SPI Channels
1
Number of Timers/Counters
2
Oscillator Type
Internal
Package Quantity
2940
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
6KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Width
6.125mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101T6U6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101T6U6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

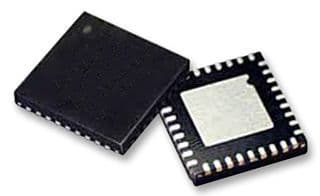

Product Images
