32-bit ARM Cortex-M3 microcontroller operating at up to 36MHz. Features 128KB FLASH memory and 16KB RAM. Offers 26 programmable I/Os and interfaces including I2C, SPI, UART, and USART. Includes 3 timers, DMA, POR, PWM, and WDT peripherals. Packaged in UFQFPN with an operating temperature range of -40°C to 85°C.
Frequency36MHz
PackageUFQFPN
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101TBU6 technical specifications.
General
Package/Case
UFQFPN
Core Architecture
ARM
Data Bus Width
32b
Frequency
36MHz
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Max Frequency
36MHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Power Dissipation
1.11W
Max Supply Voltage
3.6V
Memory Size
128KB
Memory Type
FLASH,
Min Supply Voltage
2V
Number of I/Os
26
Number of Programmable I/O
26
Number of Timers/Counters
3
Oscillator Type
Internal
Package Quantity
490
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor
Radiation Hardening
No
RAM Size
16KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32F1
Watchdog Timer
Yes
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101TBU6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101TBU6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

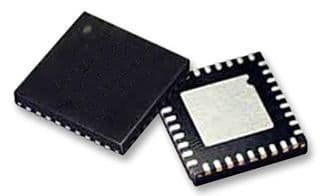

Product Images
