32-bit ARM Cortex-M3 microcontroller featuring 384KB FLASH memory and 48KB RAM. Operates at a 36MHz CPU frequency with a 32-bit data bus. Offers 80 programmable I/Os and supports interfaces including I2C (2 channels), SPI (3 channels), UART, USART, and LIN. Includes 16 ADC channels, 16 PWM channels, 6 timers/counters, and integrated peripherals like POR, WDT, DMA, and a temperature sensor. Packaged in an LQFP, SMD/SMT termination, operating from 2V to 3.6V supply voltage, with a temperature range of -40°C to 85°C.
Frequency36MHz
PackageLQFP
Quick Jump:
Technical Specifications
Stmicroelectronics STM32F101VDT6 technical specifications.
General
Package/Case
LQFP
Core Architecture
ARM
Data Bus Width
32b
Density
384KB
Frequency
36MHz
Height
1.45mm
Interface
I2C, SPI, IrDA, UART, USART, LIN
Lead Free
Lead Free
Length
14.2mm
Max Frequency
36MHz
Max Operating Temperature
85°C
Memory Size
384KB
Memory Type
FLASH,
Min Operating Temperature
-40°C
Max Power Dissipation
434mW
Max Supply Voltage
3.6V
Min Supply Voltage
2V
Number of ADC Channels
16
Number of Bits
32
Number of I/Os
80
Number of I2C Channels
2
Number of Programmable I/O
80
Number of PWM Channels
16
Number of SPI Channels
3
Number of Timers/Counters
6
Oscillator Type
Internal
Package Quantity
90
Packaging
Tray
Peripherals
POR, PWM, WDT, DMA, Temp Sensor, I2C
Radiation Hardening
No
RAM Size
48KB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
STM32 F1
Termination
SMD/SMT
Watchdog Timer
Yes
Width
14.2mm
Compliance
RoHS
Compliant
Datasheet
Stmicroelectronics STM32F101VDT6 Datasheet
Download the complete datasheet for Stmicroelectronics STM32F101VDT6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

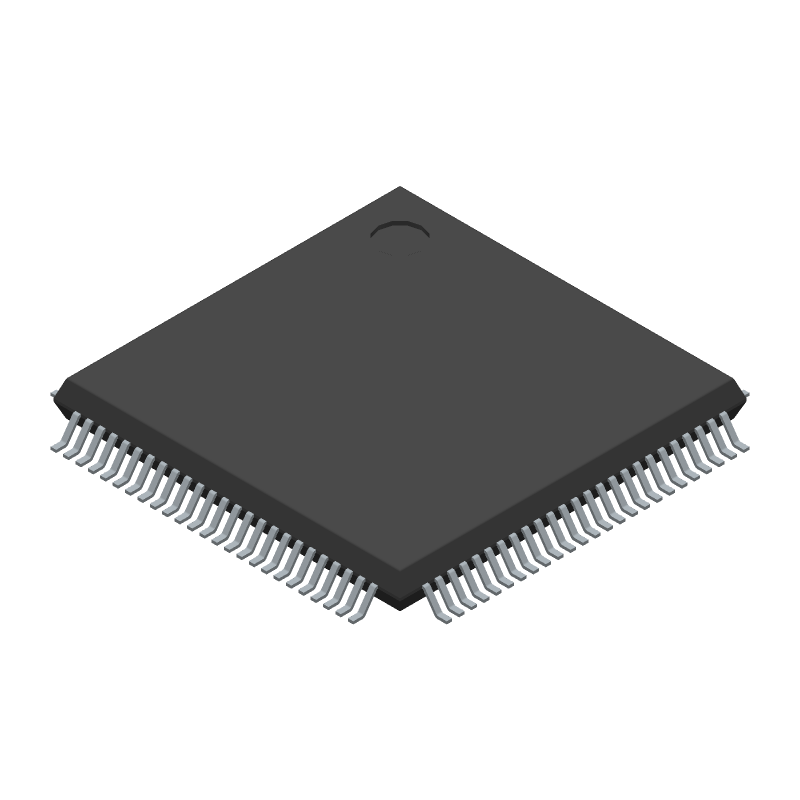

Product Images
